Configuration Setup
33..33
FFAACCTTOORRYY
CCOONNFFIIGGUURRAATTIIOONN

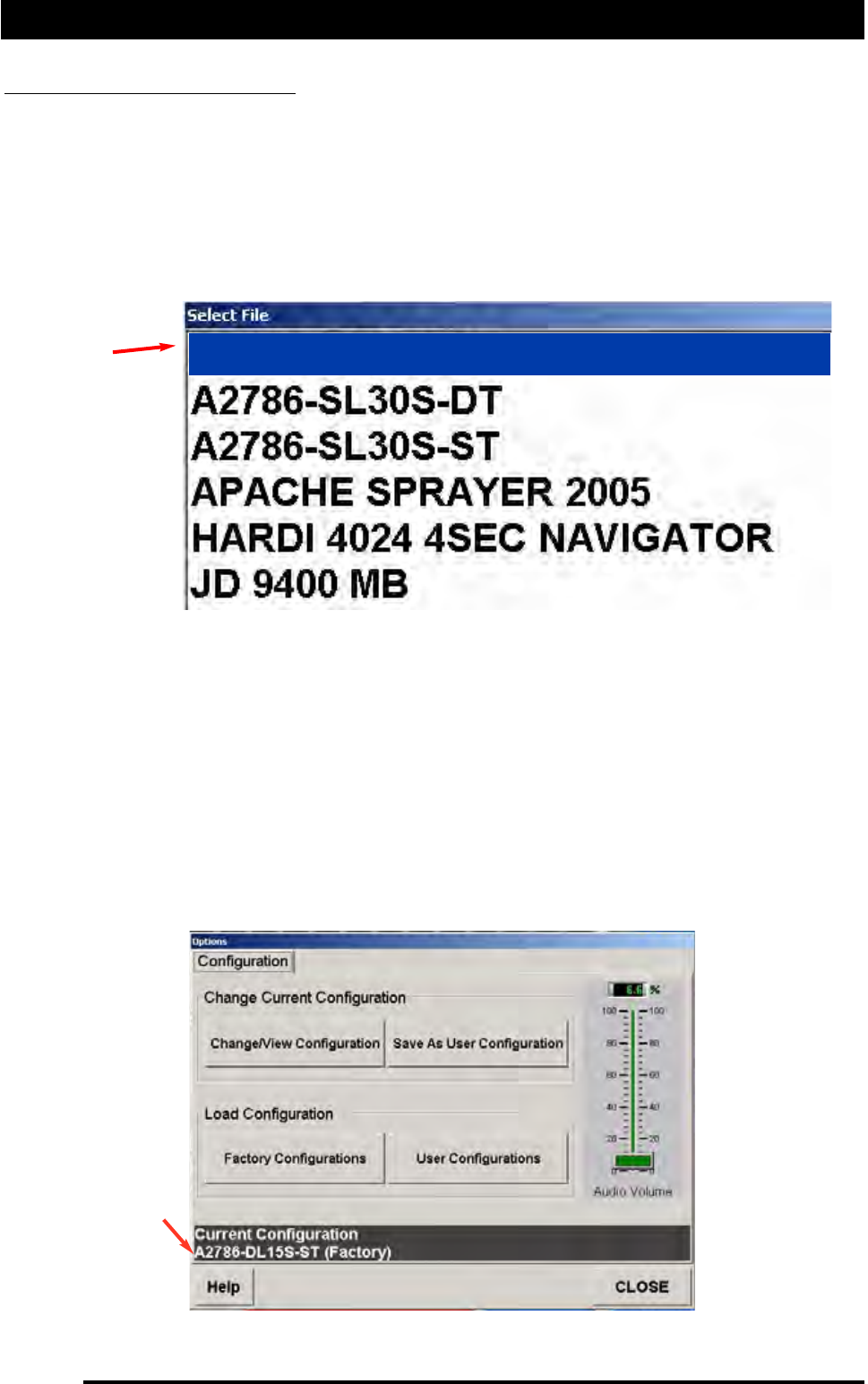

The ‘Factory Configuration’ button allows selection of KEE Sprayer kits or Listed Sprayers
1) Select ‘Factory Configurations’ button. A ‘Select File’ window will be displayed, as
displayed below. Check to see whether your Sprayer or KEE Sprayer kit is listed here.
2) If your sprayer
iiss
nnoott
listed then go to ‘Point 3’.
If your sprayer
iiss
listed then go to ‘Point 5’.
3) Select the ‘CANCEL’ button. This will close the ‘Select File’ window.
44)) TThheenn
ggoo
ttoo
SSeeccttiioonn
33..55..
Page 43
V1.98 21/06/06
A2786-DL15S-ST
Showing the
highlighted
option
5) Select the sprayer by touching the name of the ‘Sprayer’, this will highlight the sprayer.
The above example is shown ‘A2786-DL15S-ST’ which is a KEE Sprayer kit.
6) Press the ‘SELECT’ button to load the sprayers configuration.
7) A window will appear confirming that the sprayer selected will be loaded.
Select the ‘YES’ button, to load the settings for the selected sprayer.
OR Select the ‘NO’ button to stop loading the selected sprayer.
If the Sprayer or Sprayer Kit was listed and selected then the Sprayer Configuration will be
loaded. The current Sprayer or Sprayer kit will be displayed, the ‘(Factory)’ after the Sprayer
name, as shown below, indicates the Sprayer was loaded from the ‘Factory Configurations’ list.
Showing current
Sprayer selected
FFiigguurree
2266::
HHiigghhlliigghhtteedd
sspprraayyeerr
FFiigguurree
2277::
OOppttiioonnss-
CCoonnffiigguurraattiioonn
sshhoowwiinngg
sspprraayyeerr
kkiitt
