Page 32
V1.98 21/06/06
2.1 STARTING THE X15 CONSOLE
1) Switch the ZYNX X15 Console ON
2) Press the ‘
SSTTOOPP’’
button when the ‘ZYNX X15 Product Selection Screen’ is displayed.
3) Highlight the
SSPPRRAAYY CCOONNTTRROOLLLLEERR
. (If the ‘Sprayer Controller’ software is being used
on its own.
OR Highlight the
SSPPRRAAYY
CCOONNTTRROOLLLLEERR
and
GGUUIIDDAANNCCEE
screens
..
NNoottee::
The Operators
manual assumes the
GGUUIIDDAANNCCEE
and
SSPPRRAAYY
CCOONNTTRROOLLLLEERR
are being used together.
This can be done by simply touching the
SSPPRRAAYY
CCOONNTTRROOLLLLEERR
and
GGUUIIDDAANNCCEE
screens.
4) Select the
‘‘SSTTAARRTT
’ button. The ‘ZYNX Spray Controller’ and ‘ZYNX Guidance’
software, will now be loaded. The ‘GUIDANCE’ screen will be displayed, shown below.
‘GUIDANCE’
screen
‘STOP’ button
‘SPRAY CONTROLLER
screen
‘START’ button
‘SPRAYER’ ICON
5) Select the ‘SPRAYER’ icon. The Sprayer ‘Working Screen’ will be displayed.
Note: If the ‘SPRAYER CONTROLLER’ was the only screen selected, then the Sprayer
‘Working Screen’ will be displayed instead of the above ‘GUIDANCE’ screen.

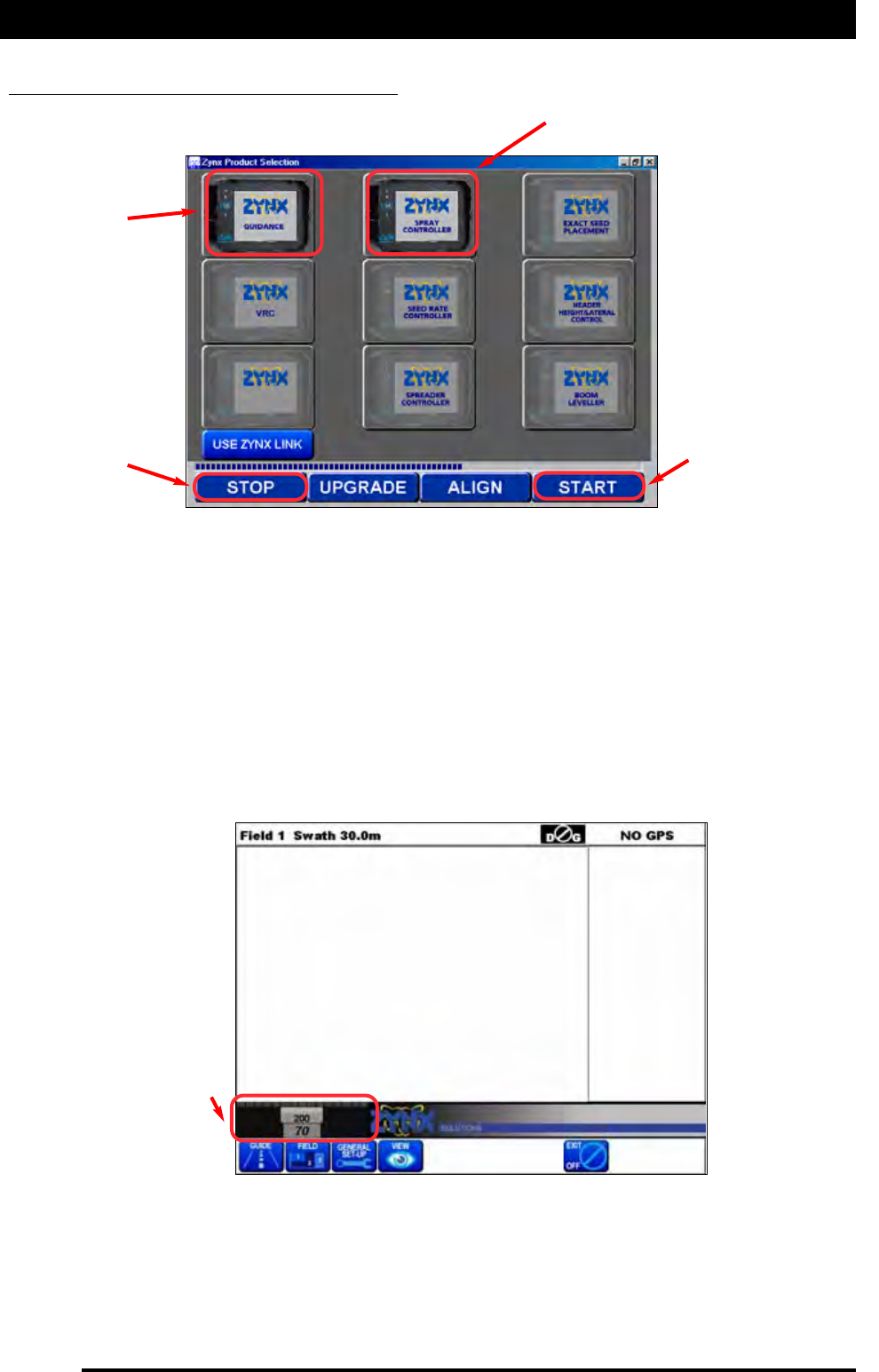

Figure 15: ZYNX Product Selection screen
Figure 16: ZYNX Guidance Screen showing Sprayer Icon
