Wiring Connection Table for KEE Sprayrate Interface- A1237
Page 148
V1.98 21/06/06
21.9 KEE SPRAYRATE INTERFACE
Part Number: A1237
Firmware Version: BMS 41
ZZYYNNXX
SSpprraayyeerr
CCoonnttrroolllleerr
SSooffttwwaarree
1. OPTIONS/ECU/Controller: Select ‘Spray Interface’
2. OPTIONS/ECU/ECU Model: N/A
Master Switch: To use this connection connect the ‘External Master Switch’ (A601) to the plug.
This closes the circuit between Pin A and Pin B.
Open circuit, ‘Master is ON’. Closed circuit, ‘Master is OFF’.
Select ‘External Master Switch’, ‘Enabled’ on the OPTIONS/Switches page, if fitting an External
Master Switch to this plug.
Tractor Harness: Connect the Tractor Harness to this plug and to the tractors battery.
Tractor Radar: To utilise this plug connect the ‘Tractor Radar Adaptor Harness’ (A449) to this
plug. This enables splicing to a Tractor radar input.
Note: Refer to tractor manufacturers technical data before attempting installation.
Select ‘Tractor Radar’ from the ‘Speed From’ window on the OPTIONS/ECU page.
Switcbox: Connect KEE’s External Switcbox to this plug. See Section 5.0 (Switches Page) to
enable the ‘External Switcbox’.
‘To Console Power’- Do not use.
‘To Console-RS232’- connect the serial communications cable from this plug to the ‘COM Port’
on the back of the ZYNX Console. Connect to the ‘COM Port’ that is selected on the
OPTIONS/ECU page.

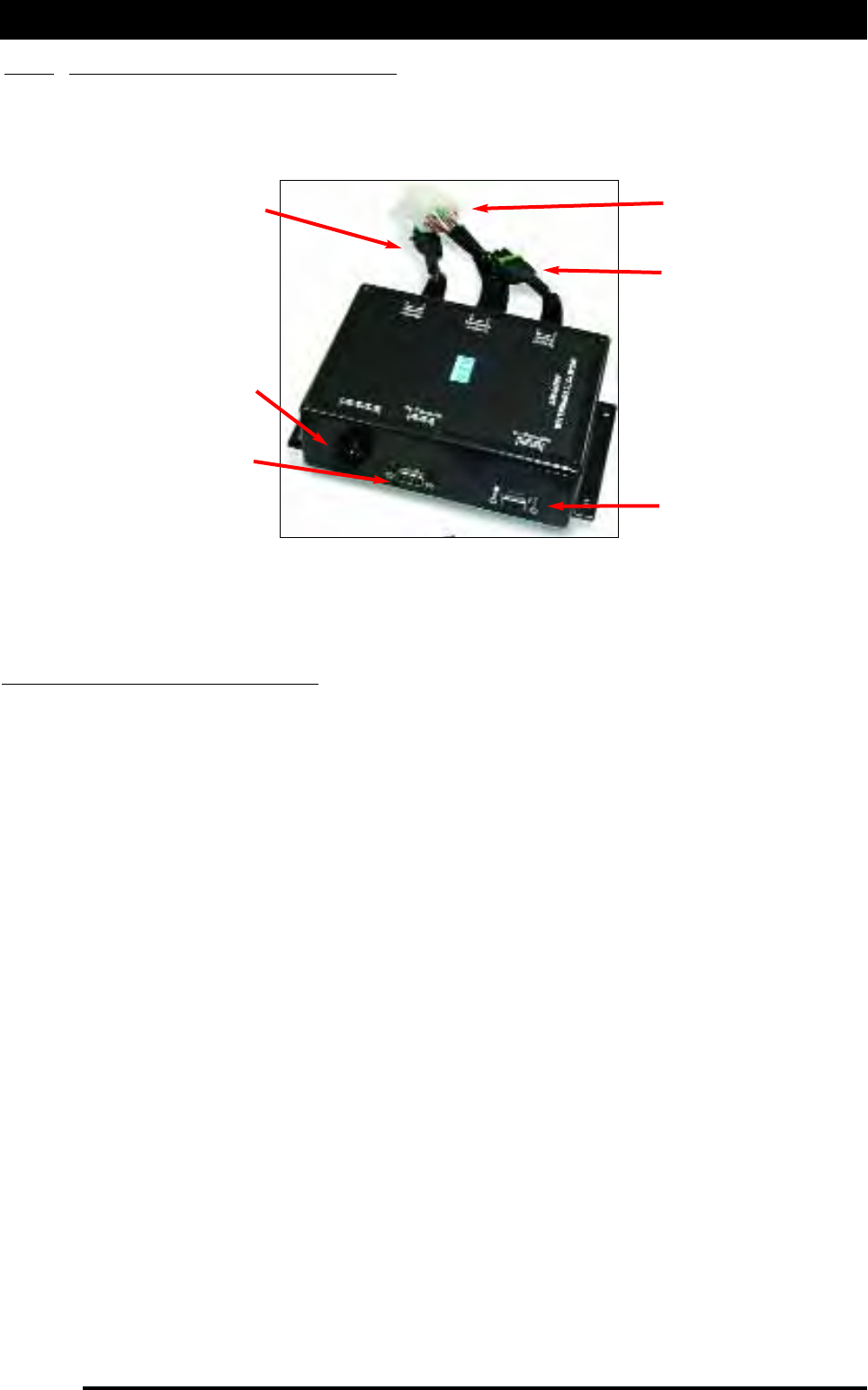

Tractor Radar
Tractor Harness
Master Switch
External Switchbox
Don’t Use this plug
To Console-RS232
FFiigguurree
113300::
KKEEEE
SSPPRRAAYYRRAATTEE
IINNTTEERRFFAACCEE
