Wiring Connection Tables
Wiring
Connection
Tables
for
SWITCHBOX
Connectors
for
ALL
Spray
ECU’s
All Spray ECU’s have a Connector labeled ‘SWITCHBOX’, below are the pin-outs for the
SWITCHBOX connector. The SWITCHBOX Connector on the Spray ECU have common pin-outs
on all Spray ECU models.
SSWWIITTCCHHBBOOXX
The Connector labeled ‘SWITCHBOX’ is 9 ‘male’ pin connector, the Sprayer Switchbox connects
to this Connector.
Page 110
V1.98 21/06/06
FFiigguurree
7777::

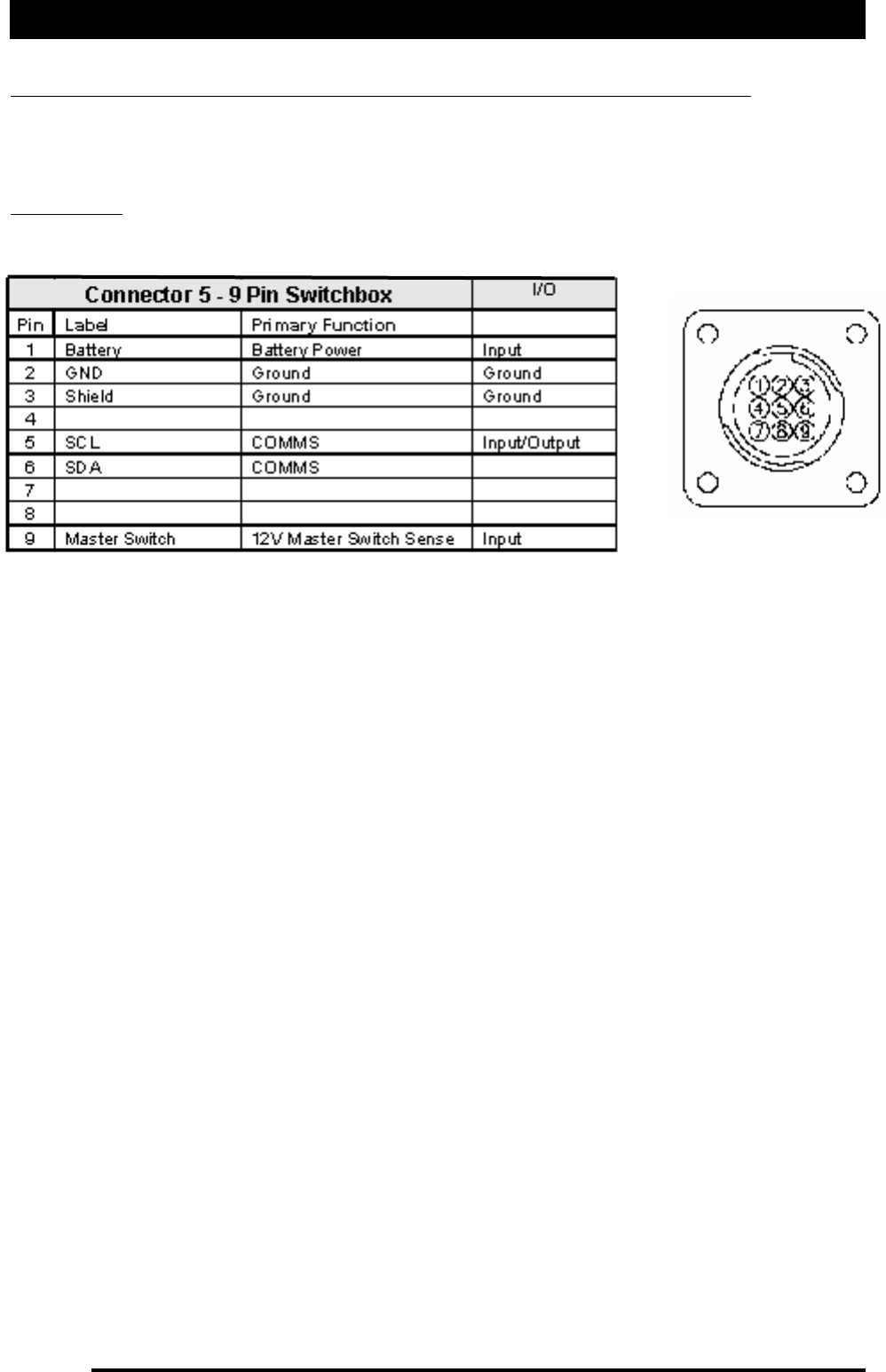

SSWWIITTCCHHBBOOXX
CCOONNNNEECCTTOORR
TTAABBLLEE
