Setting Up- Speed
17.5 SPEED
SSppeeeedd RReeaaddoouutt-
Displays the current ground speed either from: Wheel sensor, Tractor radar,
GPS Speed or Test Speed.
Select the ‘Speed Readout’ icon to display the SPEED window as shown above.
TTeesstt
SSppeeeedd-
A test speed can be entered here to perform all tests necessary while the sprayer
is stationary, before going out doing a test run. The Spraying software will simulate a speed
whilst stationary, the sprayer will operate in MANUAL or AUTO modes enabling the checking
of pumps, flowmeter, nozzles, regulator etc.
Select the ‘Increase Speed’ or ‘Decrease Speed’ to set a ‘Test Speed’. The ‘Test Speed’ will be
displayed in the ‘Speed Readout’.
WWhheeeell
FFaaccttoorr-
The current ‘Wheel Factor’ is displayed. When the ‘Calculator Icon’, next to the
‘Wheel Factor’ is selected, the ‘Wheel factor Entry’ window is displayed. This is the same
window as selected in the OPTIONS/SETUP page, see Section 5.1 for setup details.
SSpprraayy
WWiiddtthh-
The current ‘Spray Width’ is displayed. When the ‘Calculator Icon’ next to the
‘Spray Width’ is selected, the ‘Section Widths’ window is displayed. This is the same window
as selected in the OPTIONS/SPRAYER page, see Section 2.0 for setup details.
LLooww
SSppeeeedd
SShhuuttooffffss-
Displays the ‘Low Speed Shutoff’s’ for each section valve.
Selecting the ‘VALVE INFO’ button will display the valve information for each section valve,
on the boom section icon, as shown above. This displays which boom section is connected to
each section valve and displays the ‘Low Speed Shutoff’ for each valve. The ‘VALVE INFO’ will
be displayed until the ‘VALVE INFO’ button is selected again.
Selecting the ‘Low Speed Shutoff’ ‘Calculator Icon’ will display the ‘Low Speed Shutoff’
window. This is the same window as selected in the OPTIONS/SETUP page, see section 5.0 for
setup details.
LLooww
PPrreessssuurree
HHoolldd-
The current ‘Low Pressure Hold’ value is displayed. When the ‘Calculator
Icon’ next to the ‘Low Pressure Hold’ is selected, the screen keyboard window is displayed. A
‘Low Pressure Hold’ value can be entered. The ‘Low Pressure Hold’ can also be selected on the
OPTIONS/SETUP page, see Section 5.0 for details.
Page 85
V1.98 21/06/06

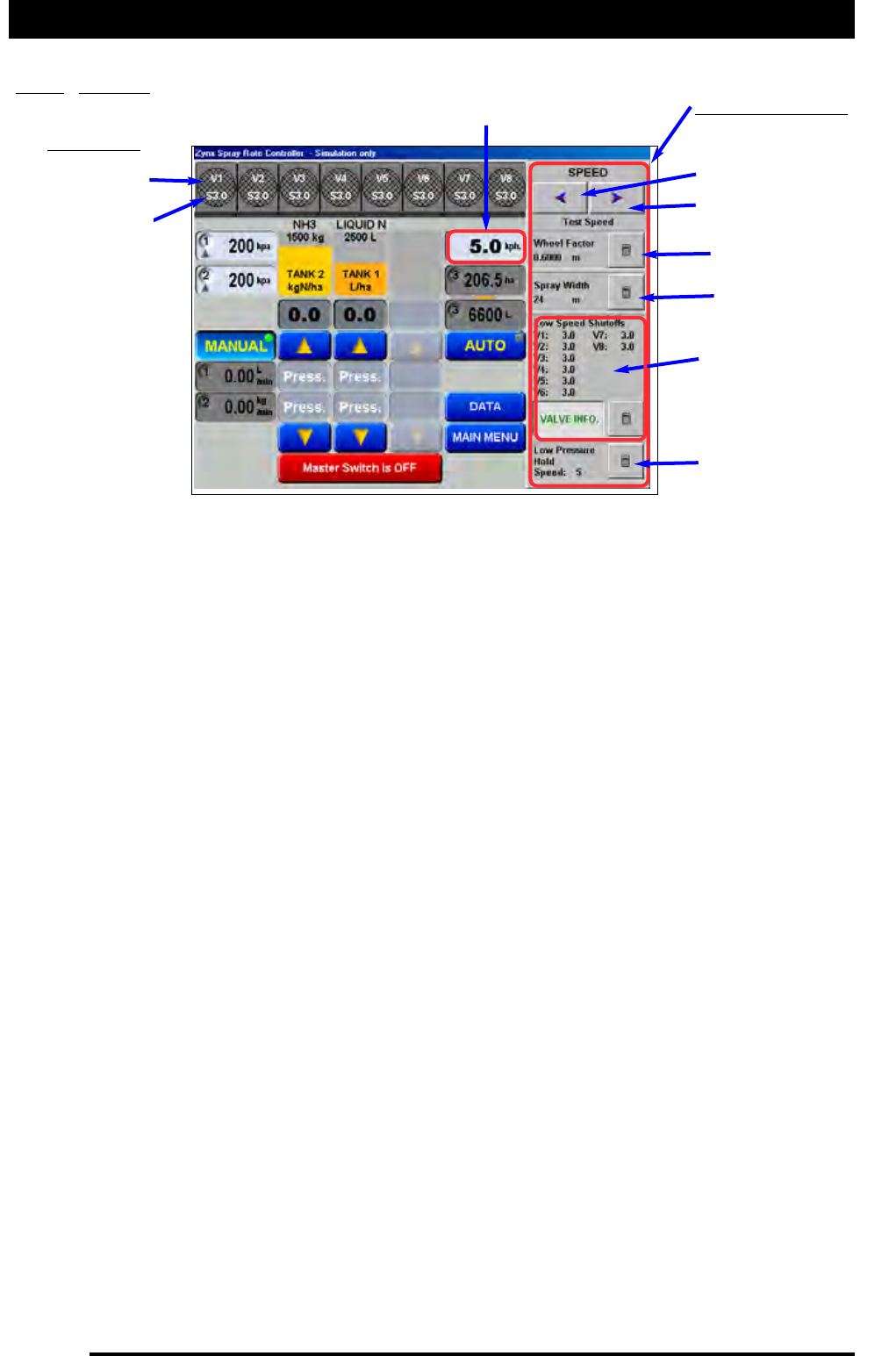

SPEED Window
Increase Speed
Wheel Factor
Low Speed Shutoffs
Low Pressure Hold
Spray Width
Decrease Speed
Speed Readout
Valve Info
Valve Number
Low Speed
Shutoff Value
