10-24
Cisco 12000/10700 v3.1.1 Router Manager User Guide
OL-4455-01
Chapter 10 Interface Performance
SRP Performance

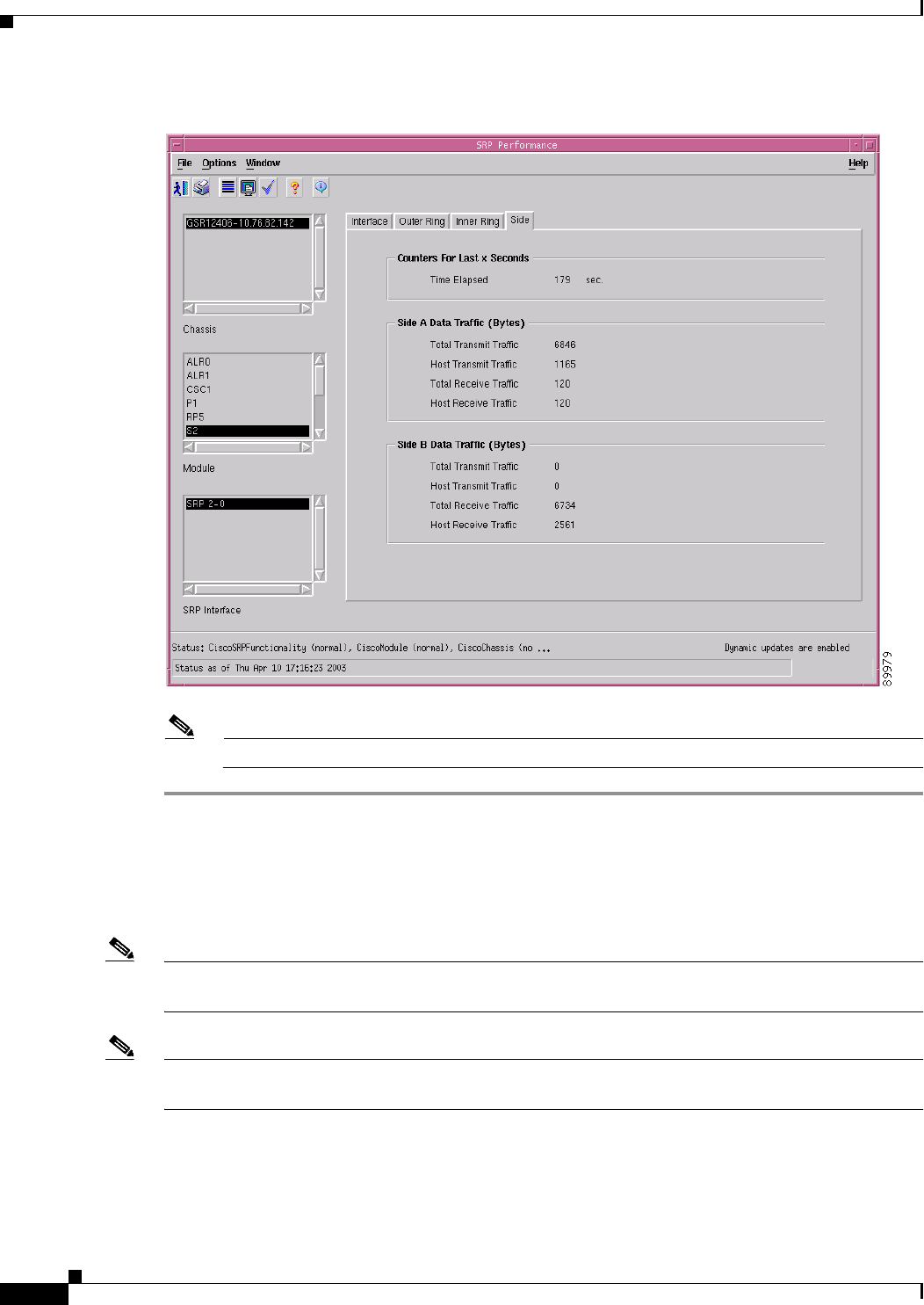

Figure 10-17 SRP Performance window—Side tab
Note The performance windows are not applicable to the OC-12 line cards.
SRP Performance Window—Detailed Description
The SRP Performance window displays four tabs: Interface, Outer Ring, Inner Ring and Side
Note All the counters that are mentioned in this dialog are subjected to the current 15 minutes interval on the
device.
Note This dialog is not supported on OC-12 SRP interface (except Engine 3 OC-12c/STM-4 line card
interface) objects.
