Chapter 15 MPLS Management
Fault Management for MPLS LDP

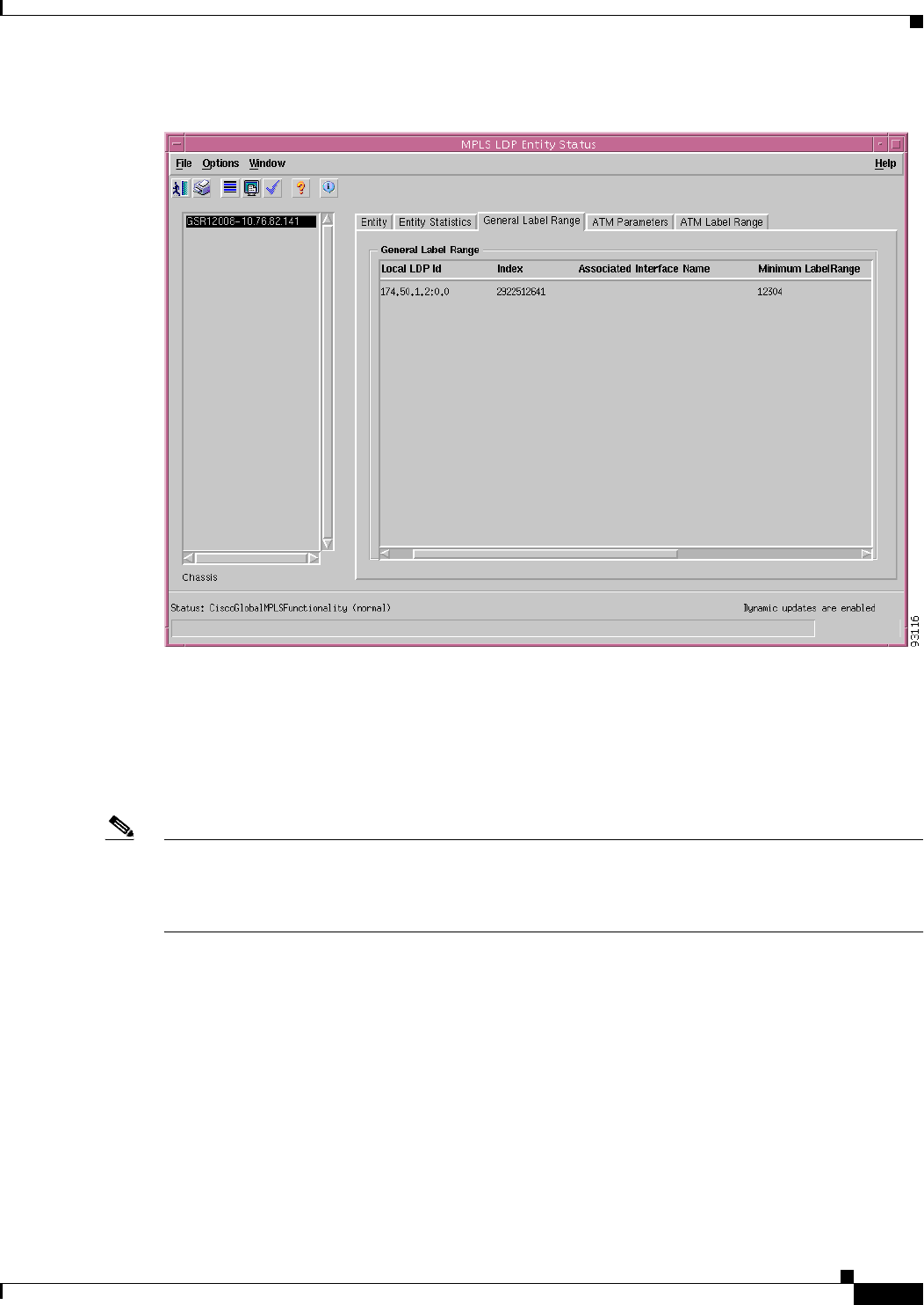

Figure 15-11 MPLS LDP Entity Status Window—General Label Range Tab
General Label Range
The General Label Range area displays the General Label Range table. This table specifies a contiguous
range of generic labels, or a “label range” for LDP Entities. LDP Entities which use Generic Labels must
have at least one entry in this table. One row entry in this table contains information on a single range
of labels represented by the configured Upper and Lower Bounds pairs.
Note There is no corresponding LDP message which relates to the information in this table, however, this table
does provide a way for a user to 'reserve' a generic label range. The ranges for a specific LDP Entity are
unique and non-overlapping. A row will not be created unless a unique and non-overlapping range is
specified.
General Label Range table displays the following information:
LDP Identifier—Displays the LDP identifier.
Index—This index is used as a secondary index to uniquely identify this row.
Associated Interface Name—This value represents the Interface Name where the Generic Label would
be created. The Value “ “ means the interface is not known.
Minimum Label Range—The minimum label configured for this range.
Maximum Label Range—The maximum label configured for this range.
Storage Type—Displays the storage type for the LDP entry.
