15-10
Cisco 12000/10700 v3.1.1 Router Manager User Guide
OL-4455-01
Chapter15 MPLS Management
Fault Management for MPLS LSR Interfaces
Last Change—Displays the value of the sysUpTime at the time the interface entered its current
operational status.
Counter Discontinuity Time—Displays the value of the sysUpTime on the most recent occasion at which
any one or more of this interfaces counters suffered a discontinuity.
MPLS Setup Tab
The MPLS Setup tab (see Figure 15-4) displays a single Select Interface area.

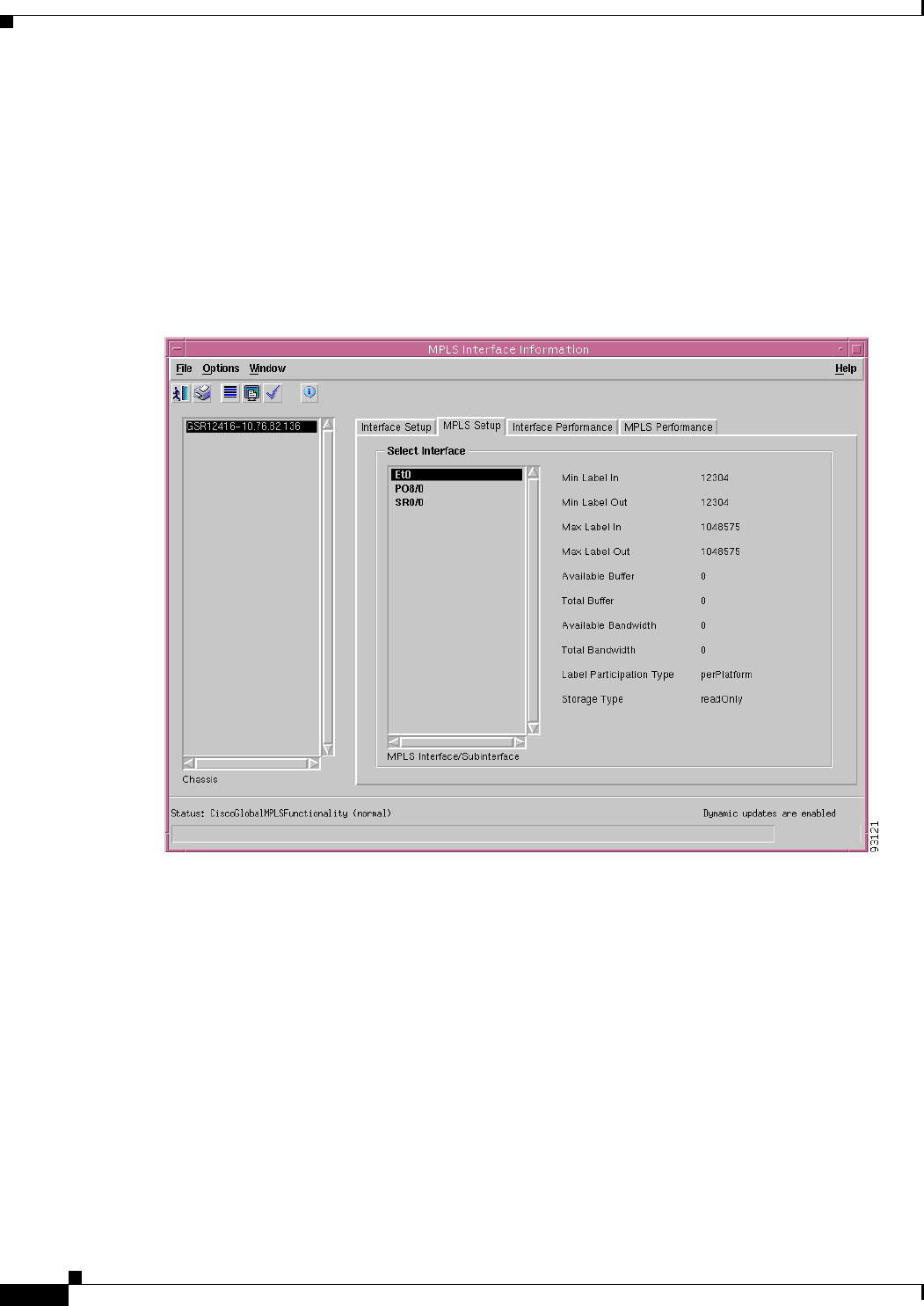

Figure 15-4 MPLS Interface Information Window—MPLS Setup Tab
Select Interface
The Select Interface area displays MPLS interface configuration information as follows:
MPLS Interface/Subinterface list—Lists all the MPLS enabled interfaces and MPLS enabled
sub-interfaces on the selected chassis.
Min Label In—Displays the minimum value of an MPLS label that this LSR is willing to receive on this
interface.
Min Label Out—Displays the minimum value of an MPLS label that this LSR is willing to send on this
interface.
Max Label In—Displays the maximum value of an MPLS label that this LSR is willing to receive on this
interface.
Max Label Out—This is the maximum value of an MPLS label that this LSR is willing to send on this
interface.
