Cisco 12000/10700 v3.1.1 Router Manager User Guide
OL-4455-01
Chapter 14 Routing
BGP Configuration
Action
Add Neighbor Entry—Clicking on the Add Neighbor Entry action button adds the neighbor entry in the
device.
Remove Neighbor Entry—Clicking on the Remove Neighbor Entry action button removes the neighbor
entry from the device.
Viewing the Redistribution Tab on the BGP Configuration Window
The Redistribution tab displays the redistributed information from other routing protocols. The user can
add or remove the redistributed protocol entries on the device. To view the Redistribution tab on the BGP
Configuration window for a chassis, proceed as follows:
Step 1 Right click on the chassis object and choose Configuration>BGP>BGP Configuration. See Table 14-1
on page 14-2 for information on which objects allow you to launch the BGP Configuration window.
Step 2 Click on the Redistribution tab.

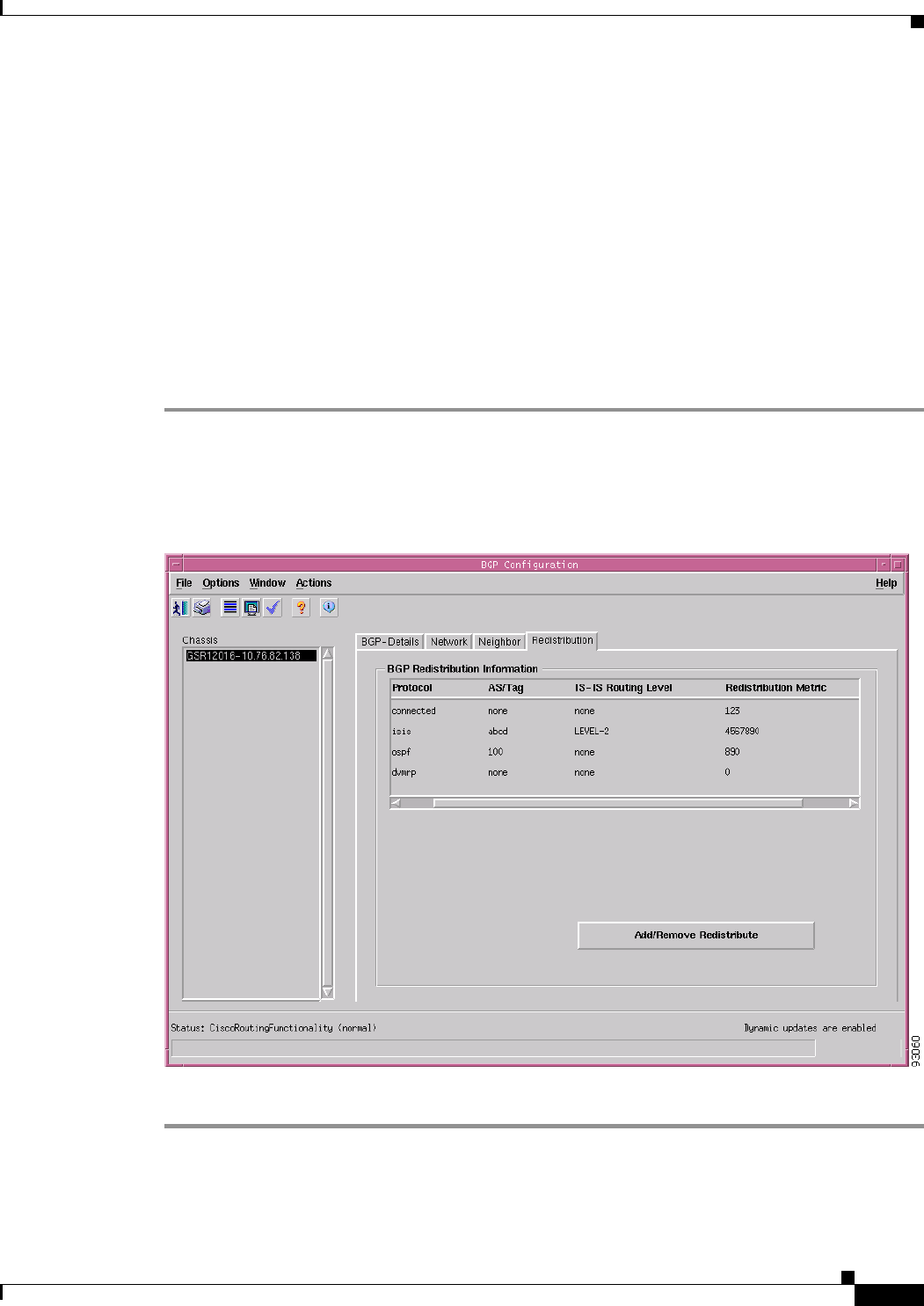

Figure 14-9 BGP Configuration Window—Redistribution Tab
Step 3
Choose the chassis from the left side of the window.
