5. Spindle Adjustment
5 - 21
bit2. Up-to-speed (US)
This signal turns ON when the start command signal (forward run, reverse run) is ON, and the
motor speed has reached a range of ±15% (standard value) of the speed command value. This
signal turns OFF when the start command signal turns OFF. The up-to-speed output range can be
set with the parameter SP048 (SUT). Even though the setting value is small, the output will be
±45r/min. Pay attention when speed command value is small.

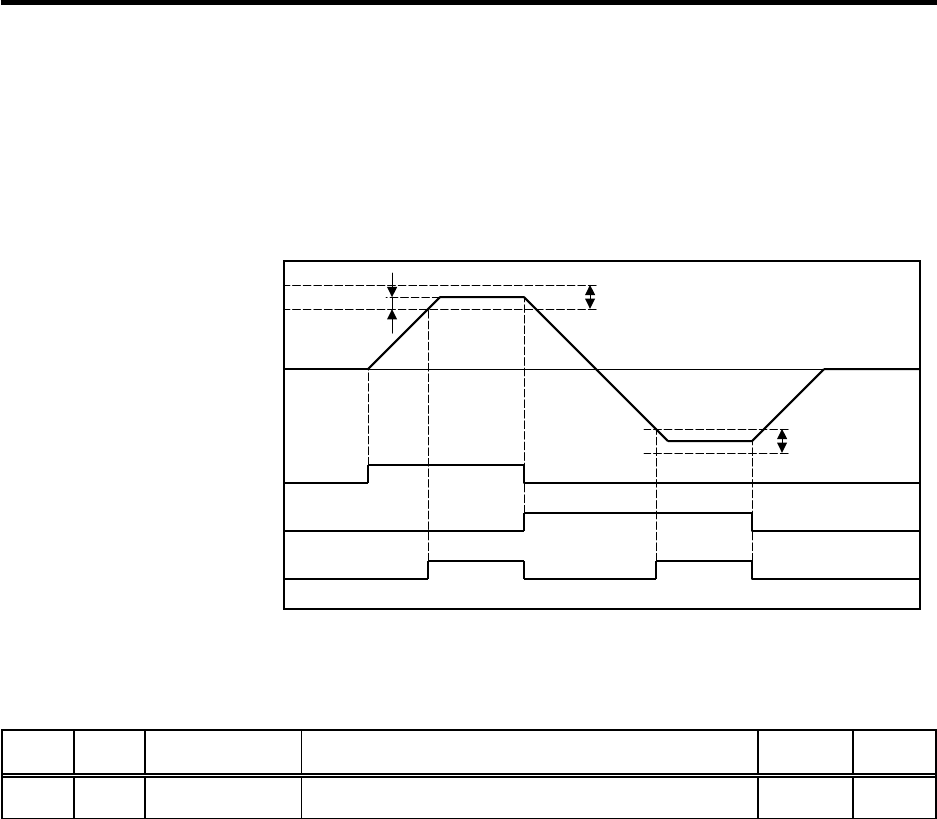

Up-to-speed (US) sequence
Related spindle parameter
No. Abbr. Parameter name Details
Setting
range
Standard
SP048 SUT* Speed reach range Set the speed deviation rate with respect to the commanded
speed for output of the speed reach signal.
0 to 100
(%)
15
Motor speed
Forward run start command
(SRN)
ON
OFF
0
SP048
Reverse run start command
(SRI)
ON
OFF
Up-to-speed (US)
ON
OFF
Out
p
ut ran
g
e
(
minimum ±45r/min
)
Out
p
ut ran
g
e
