Appendix 3. EMC Installation Guidelines
A3 - 11
40A item
(250V Series) (500V Series)
[Unit: mm]
Dimension
Model
A B C
HF3005A-TM
HF3010A-TM
HF3015A-TM
HF3020A-TM
180 170 130
HF3030A-TM
HF3040A-TM
260 155 140
HF3050A-TM 170
HF3060A-TM
290 190
230
HF3080A-TM
HF3100A-TM
405 220
HF3150A-TM 570 230
210

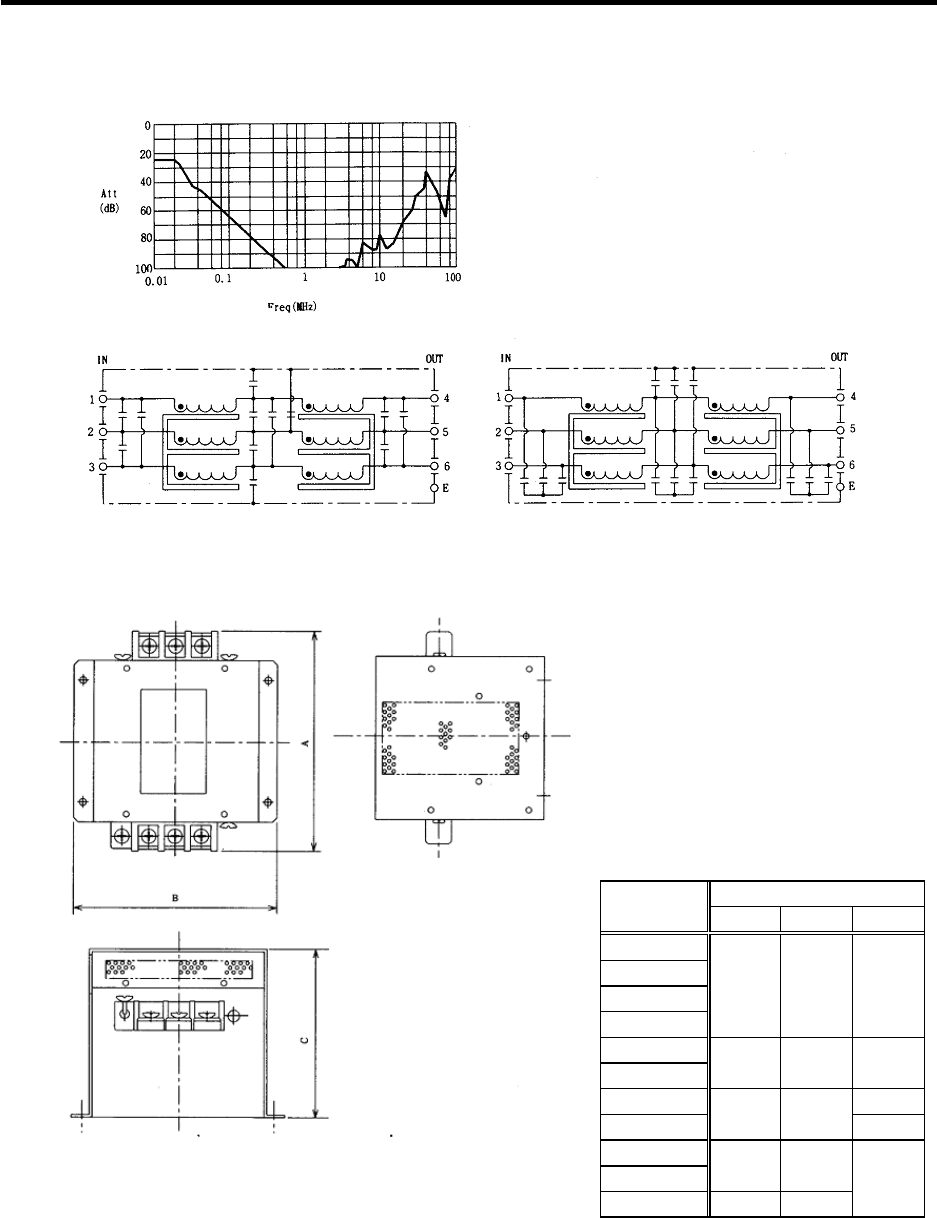

<Typical characteristics>
<Circuit diagram>
<Outline dimensions>
