5. Spindle Adjustment
5 - 24
bit7. Index positioning completed (WRCF)
This signal turns ON during indexing operation when the spindle position reaches the in-position
range in respect to the target stop position. Once this signal turns ON it will remain ON regardless
of the spindle position until the orientation signal turns OFF or the next indexing operation signal is
input.
This signal will turn OFF for the time set with parameter SP103 (FTM) when the indexing operation
signal is input even if the current stop point and the next indexing position are in the in-position
range.
Related spindle parameter
No. Abbr. Parameter name Details
Setting
range
Standard
SP103 FTM* Index positioning
completion OFF time
timer
Set the time for forcedly turn OFF the index positioning
completion signal (different from the orientation completion
signal) after the leading edge of the indexing start signal.
0 to 10000
(ms)
200
bit8. In 1-drive unit 2-motor changeover (MTC)
This signal turns ON during motor changeover with 1-drive unit 2-motor specification.
bit9. Speed detection 2 (SD2)
This signal turns ON when the motor speed drops below the value set with parameter SP058
(SDT2). The ON to OFF hysteresis width is fixed at 15r/min. This signal turns ON when the motor
speed drops below the set speed regardless of the input signal state.

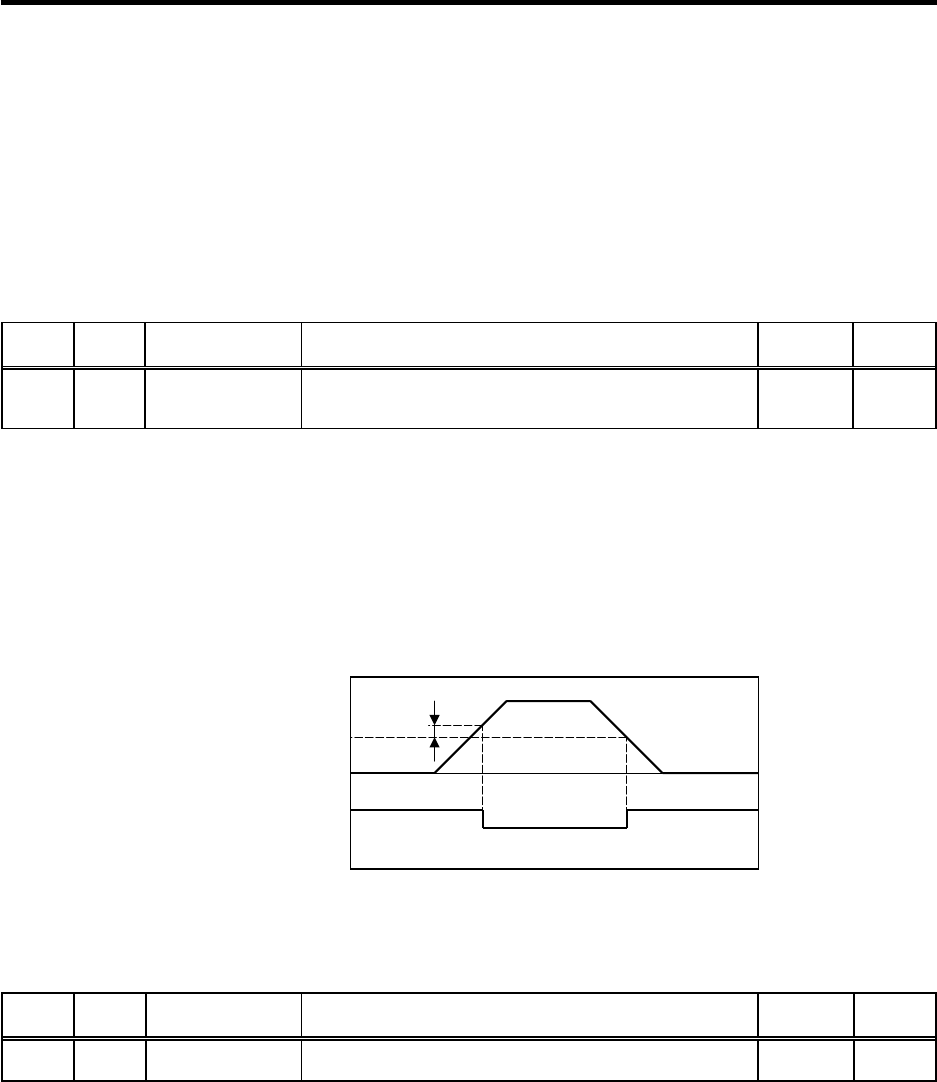

Speed detection 2 (SD2) sequence
Related spindle parameter
No. Abbr. Parameter name Details
Setting
range
Standard
SP058 SDT2* Speed detection
setting value 2
Set the motor speed for carry out speed detection 2 output. 0 to 32767
(r/min)
0
bitB. In minimum weak excitation value changeover (PYDA)
This signal turns ON in response to minimum excitation changeover request (control input 4/bitB).
15r/min
Motor speed
Speed detection 2 (SD2)
ON
OFF
SP058
0
