Appendix 1. Cable and Connector Specifications
A1 - 5

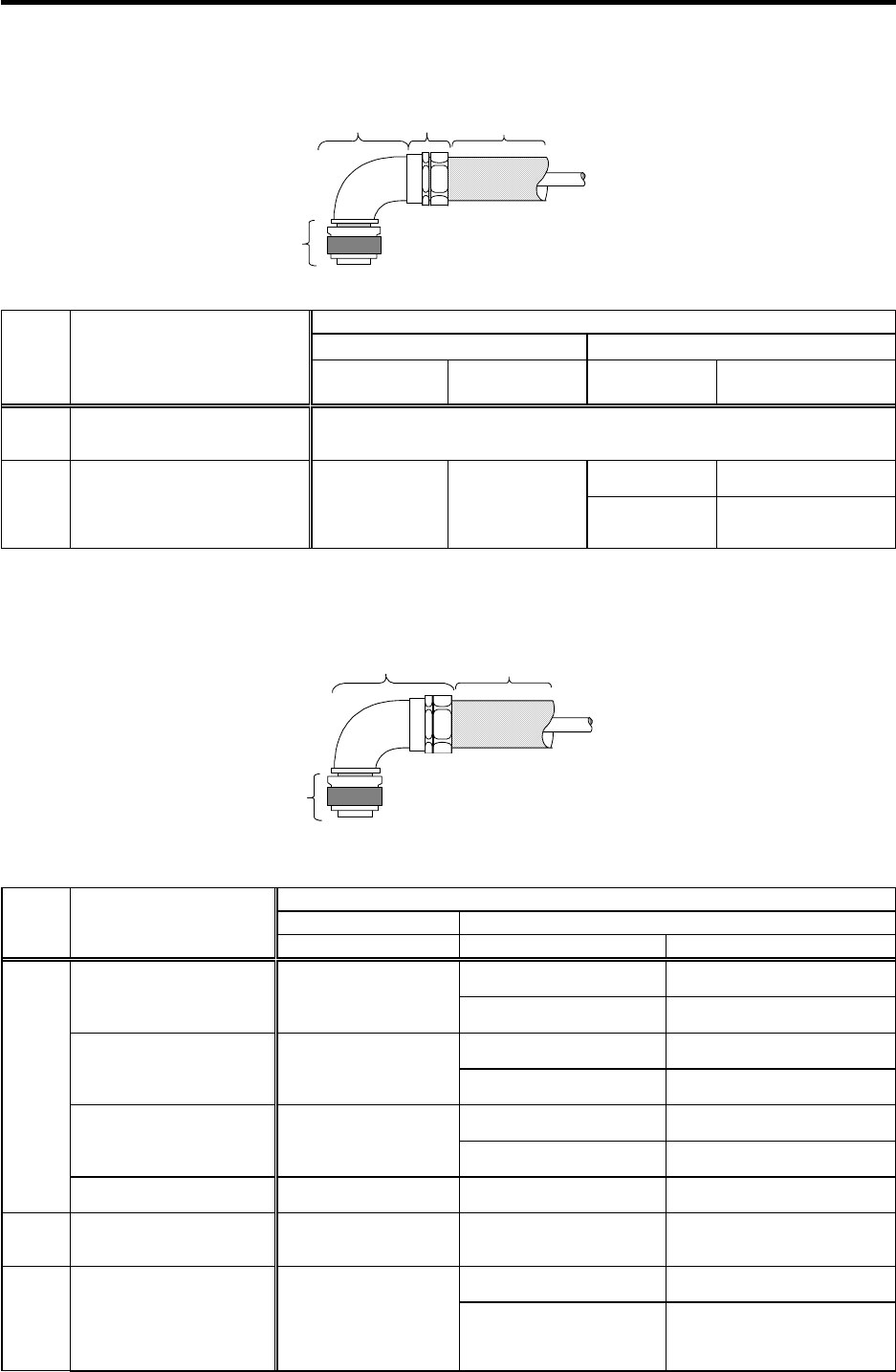

Back shell
Connector
for conduit
Flexible conduit
Cable
Connecto
r
Model
DDK Nippon Flex
Appli-
cation
Applicable motors
Connector/back
shell (straight)
Connector/back
shell (angle)
Connector for
conduit
Flexible conduit
For
brake
HA053NB to HA33NB
HC202B to HC902B
HC203B to HC703B
Select according to section "(2) Method for connecting to the connector main body".
RCC-104CA2022
VF-04
(Min. Inside diameter: 14)
For
detector
HA053N to HA33N
HC52 to HC902, HC53 to HC703
HC103R to HC503R
HA-LF11K2-S8, HA-LF15K2-S8
Connector
MS3106A22-14S
(D190)
Back shell
CE02-22BS-S
Connector
MS3106A22-14S
(D190)
Back shell
CE-22BA-S
RCC-106CA2022
VF-06
(Min. Inside diameter: 19)
(Note) None of the parts in this table can be ordered from Mitsubishi Electric Corp.
(2) Method for connecting to the connector main body
Connector for conduit
Flexible conduit
Cable
Connector
Model
DDK DAIWA DENGYO
Appli-
cation
Applicable motors
Connector (straight) Connector for conduit Flexible conduit
MSA-12-18
MAA-12-18
(Straight)
(Angle)
FCV12
(Min. inside diameter: 12.3)
For
power
HA053N, HA13N
HA23N, HA33N
CE05-6A18-12SD-B
MSA-16-18
MAA-16-18
(Straight)
(Angle)
FCV16
(Min. inside diameter: 15.8)
MSA-16-22
MAA-16-22
(Straight)
(Angle)
FCV16
(Min. inside diameter: 15.8)
HC52, HC102, HC152
HC53, HC103, HC153
HC103R, HC153R, HC203R
CE05-6A22-23SD-B
MSA-22-22
MAA-22-22
(Straight)
(Angle)
FCV22
(Min. inside diameter: 20.8)
MSA-22-24
MAA-22-24
(Straight)
(Angle)
FCV22
(Min. inside diameter: 20.8)
HC202, HC352, HC452
HC203, HC353
HC353R, HC503R
CE05-6A24-10SD-B
MSA-28-24
MAA-28-24
(Straight)
(Angle)
FCV28
(Min. inside diameter: 26.4)
HC702, HC902
HC453, HC703
CE05-6A32-17SD-B Please contact to a maker.
FCV36
(Min. inside diameter: 35.0)
For
brake
HA053NB to HA33NB
HC202B to HC902B
HC203B to HC703B
MS3106A10SL-4S (D190)
MSA-10-10
MAA-10-10
(Straight)
(Angle)
FCV10
(Min. inside diameter: 10.0)
MSA-16-22
MAA-16-22
(Straight)
(Angle)
FCV16
(Min. inside diameter: 15.8)
For
detector
HA053N to HA33N
HC52 to HC902,
HC53 to HC703
HC103R to HC503R
HA-LF11K2-S8,
HA-LF15K2-S8
MS3106A22-14S (D190)
MSA-22-22
MAA-22-22
(Straight)
(Angle)
FCV22
(Min. inside diameter: 20.8)
(Note) None of the parts in this table can be ordered from Mitsubishi Electric Corp.
