Appendix 3. EMC Installation Guidelines
A3 - 10
Appendix 3-6-3 Power line filter
(1) Power line filter for 200V
HF3000A-TM Series for 200V
Features
• 3-phase 3-wire type (250V series, 500V series)
• Compliant with noise standards German Official Notice Vfg243, EU Standards EN55011 (Class B)
• Effective for use with IGBT inverter and MOS-FET inverter.
• Easy mounting with terminal block structure, and outstanding reliability.
Application
• Products which must clear noise standards German Official Notice Vfg243 and EU Standards
EN55011 (Class B).
• For input of power converter using advanced high-speed power device such as IGBT MOS-FET.
Specifications (250V series)
Part name
HF3005A
-TM
HF3010A
-TM
HF3015A
-TM
HF3020A
-TM
HF3030A
-TM
HF3040A
-TM
HF3050A
-TM
HF3060A
-TM
HF3080A
-TM
HF3100A
-TM
HF3150A
-TM
Rated voltage
250VAC
Rated current
5A 10A 15A 20A 30A 40A 50A 60A 80A 100A 150A
Leakage current
1.5mA MAX 250VAC 60Hz

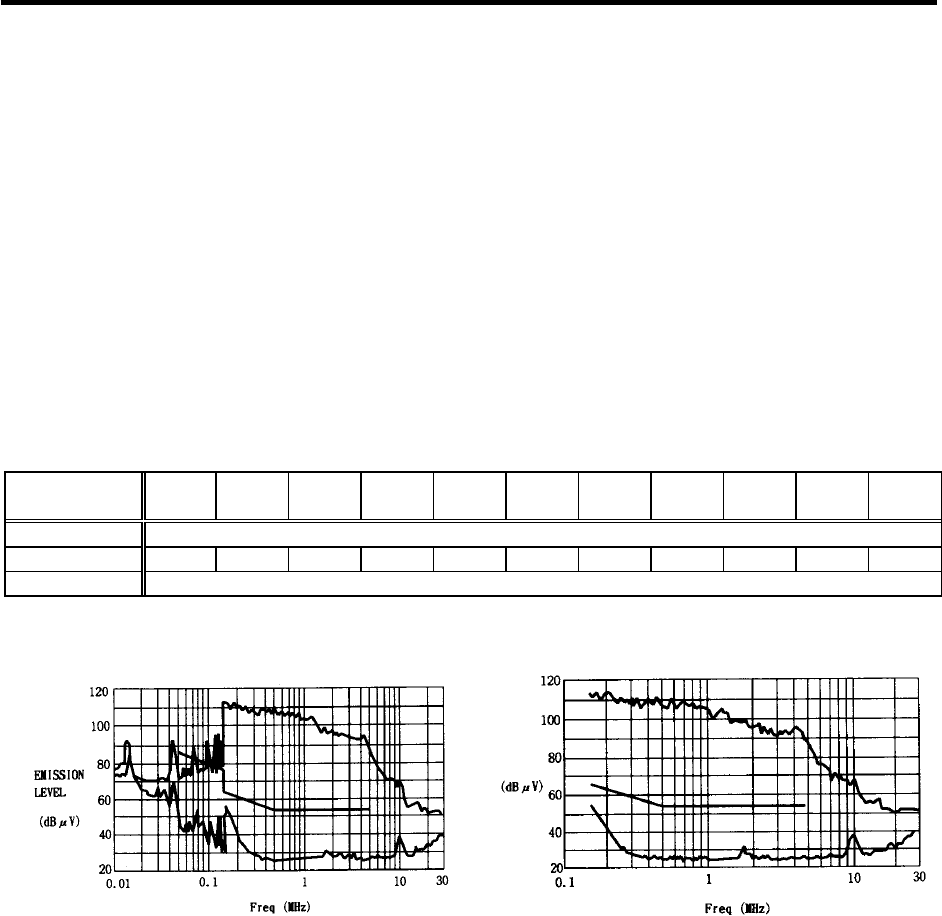

<Example of measuring voltage at noise terminal> ... Measured with IGBT inverter
German Official Notice Vfg243 measurement data EU Standards EN55011 (Class B) measurement data
