Appendix 3. EMC Installation Guidelines
A3 - 13
Example of using MX13 Series
This is a noise filter with the same dimensions as the MDS-D/DH series drive unit depth (200mm) and
height (380mm).
This unit can be laid out easily in the device by arraigning it in a row with the servo unit.
As with the servo unit, the terminals are arranged on the front enabling ideal wire lead-out.
Refer to the following figure for details.

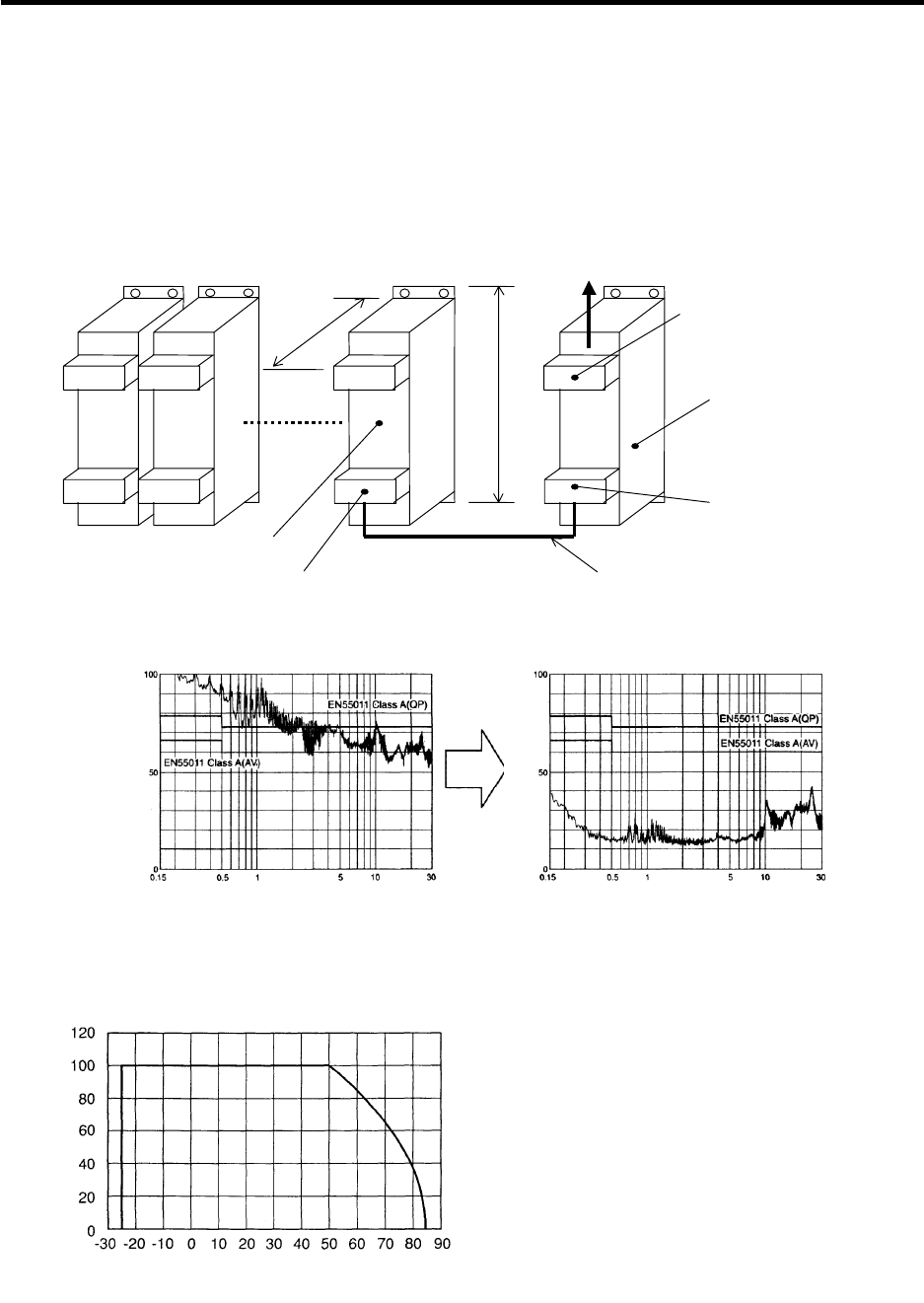

Noise filter (MX13 Series)
Servo unit
200
380
Wire to 3-phase power supply
Noise filter input terminal
Noise filter output terminal
Servo input terminal
Wire from noise filter to servo
Example of noise terminal voltage attenuation
Output derating
Noise terminal voltage
[
dBuV
]
EMI data for independent control panel
(with six-axis servo unit mounted)
Noise terminal voltage
EMI data for control panel + noise filter
(MX13030)
[dBuV]
A
mbient temperature Ta (°C)
Current (%)
