1. Installation
1 - 12

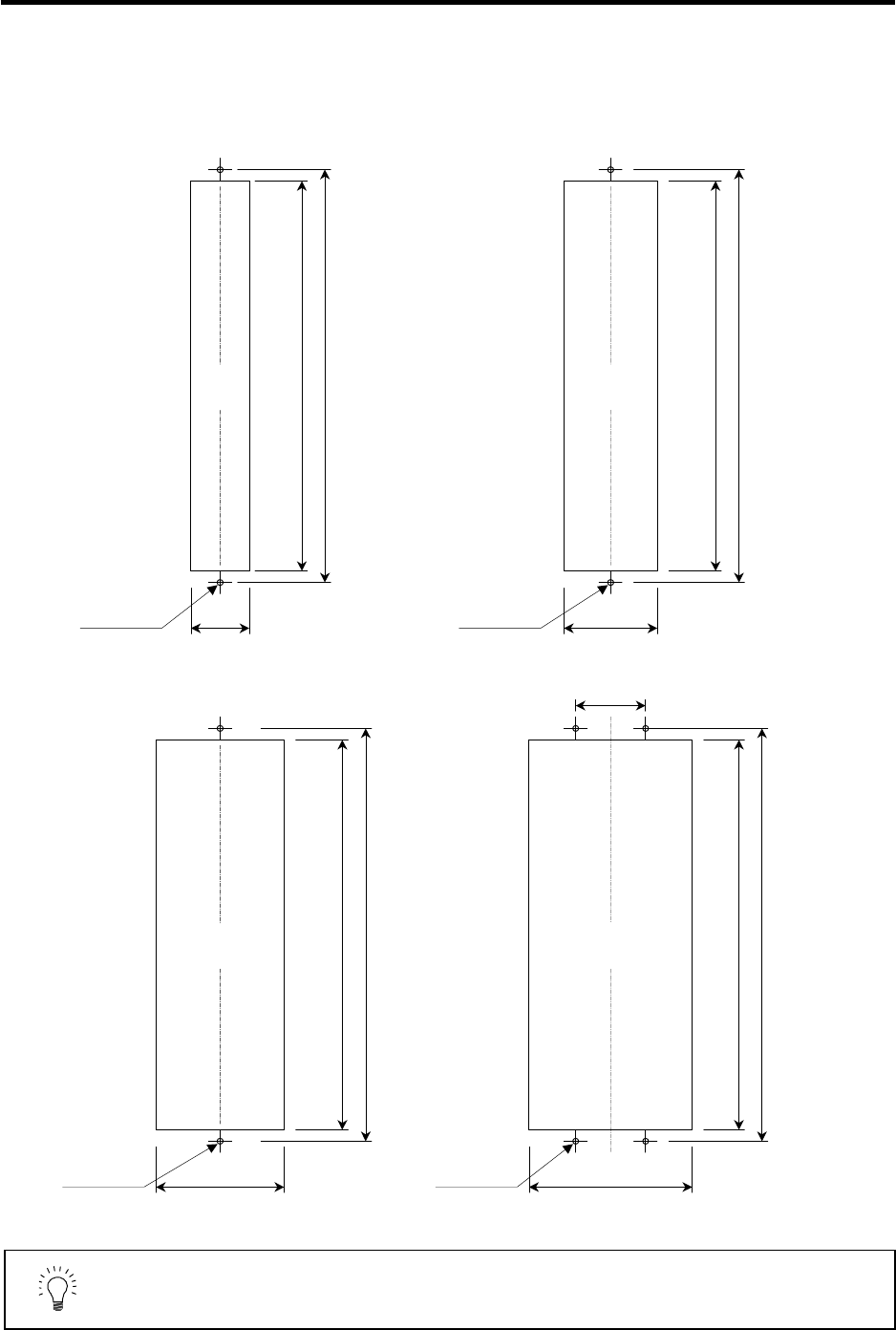

1-3-4 Panel installation hole work drawings (Panel cut drawings)
Prepare a square hole to match the unit width.
[Unit: mm]
Square
hole
(Note 1)
342
360
52
2-M5 screw
342
360
82
2-M5 screw
Square hole
(Note 1)
342
360
112
2-M5 screw
Square hole
(Note 1)
342
360
142
4-M5 screw
60
Square hole
(Note 1)
Unit width: 60mm (only with fin)
Unit width: 90mm
Unit width: 120mm Unit width: 150mm
POINT
1. Attach packing around the square hole to provide a seal.
2. A square hole does not need to be machined on the MDS-C1-V1-10 or
smaller, MDS-C1-V2-1010 or smaller and MDS-C1-SP-15 or smaller units.
