2. Wiring and Connection
2 - 5

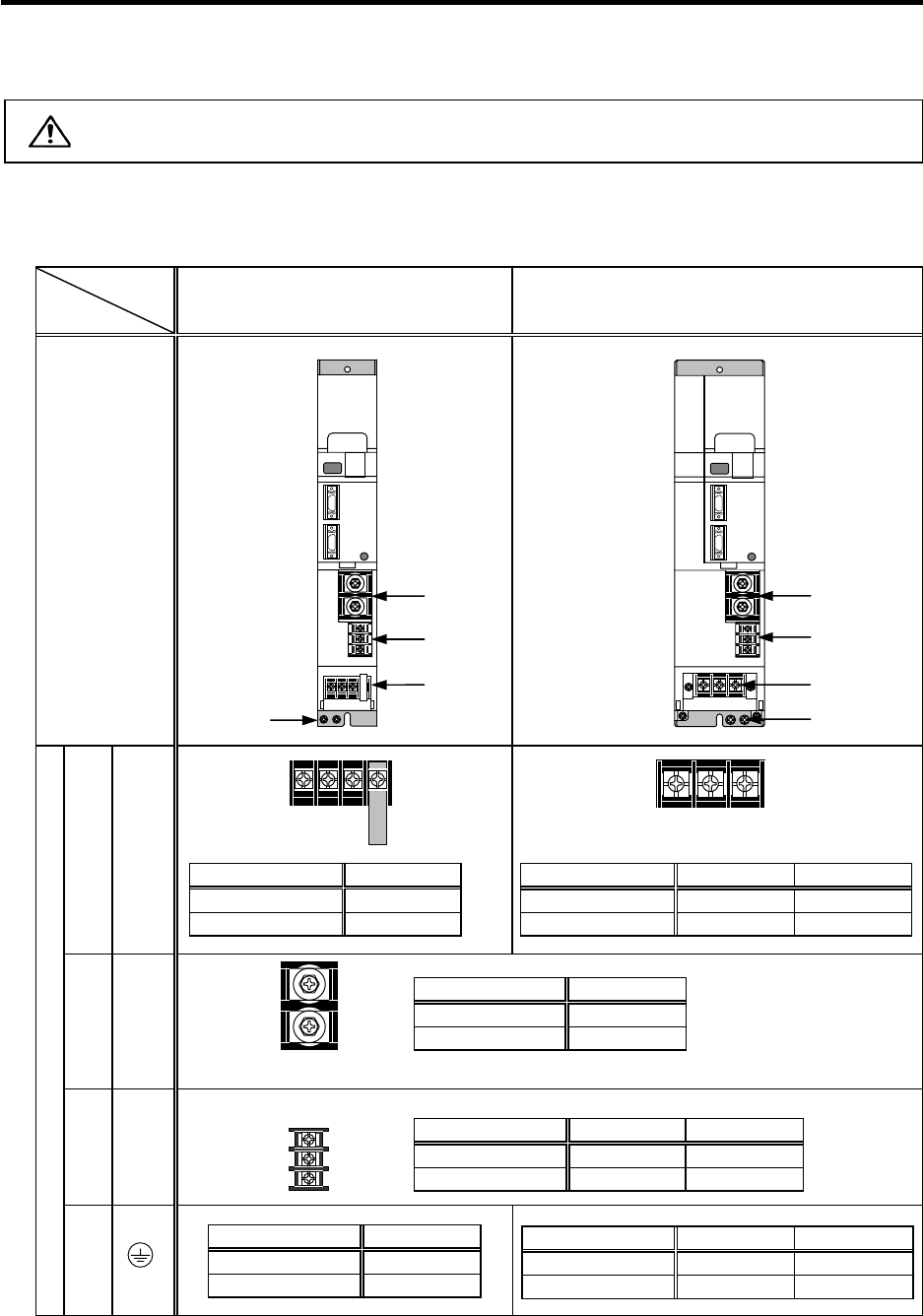

2-2-2 Connector pin assignment
CAUTION
Do not apply a voltage other than that specified in Instruction Manual on each
terminal. Failure to observe this item could lead to rupture or damage, etc.
(1) Main circuit terminal block
Power supply unit
Unit
Terminal
MDS-C1-CV-37 to 75 MDS-C1-CV-110 to 370
Terminal
position
[1] TE1
Compatible unit CV-37 to 75
Screw size
M4
Tightening torque
1.6Nm
Compatible unit CV-110 to 185 CV-220 to 370
Screw size
M5 M8
Tightening torque
3.37Nm 13.2Nm
[2] TE2
Compatible unit CV-37 to 370
Screw size
M6
Tightening torque
5.0Nm
[3] TE3
Compatible unit CV-37 to 75 CV-110 to 370
Screw size M4 M4
Tightening torque 2.0Nm 1.6m
Terminal specification/Pin assignment
[4]
Compatible unit CV-37 to 75
Screw size M4
Tightening torque 2.0Nm
Compatible unit CV-110 to 185 CV-220 to 370
Screw size M5 M8
Tightening torque 3.37Nm 13.2Nm
[2]
[3]
[1]
[4]
[2]
[3]
[4]
[1]
U V W
L+
L-
L11
L21
MC1
U V W
