3.2 Tool Length Data

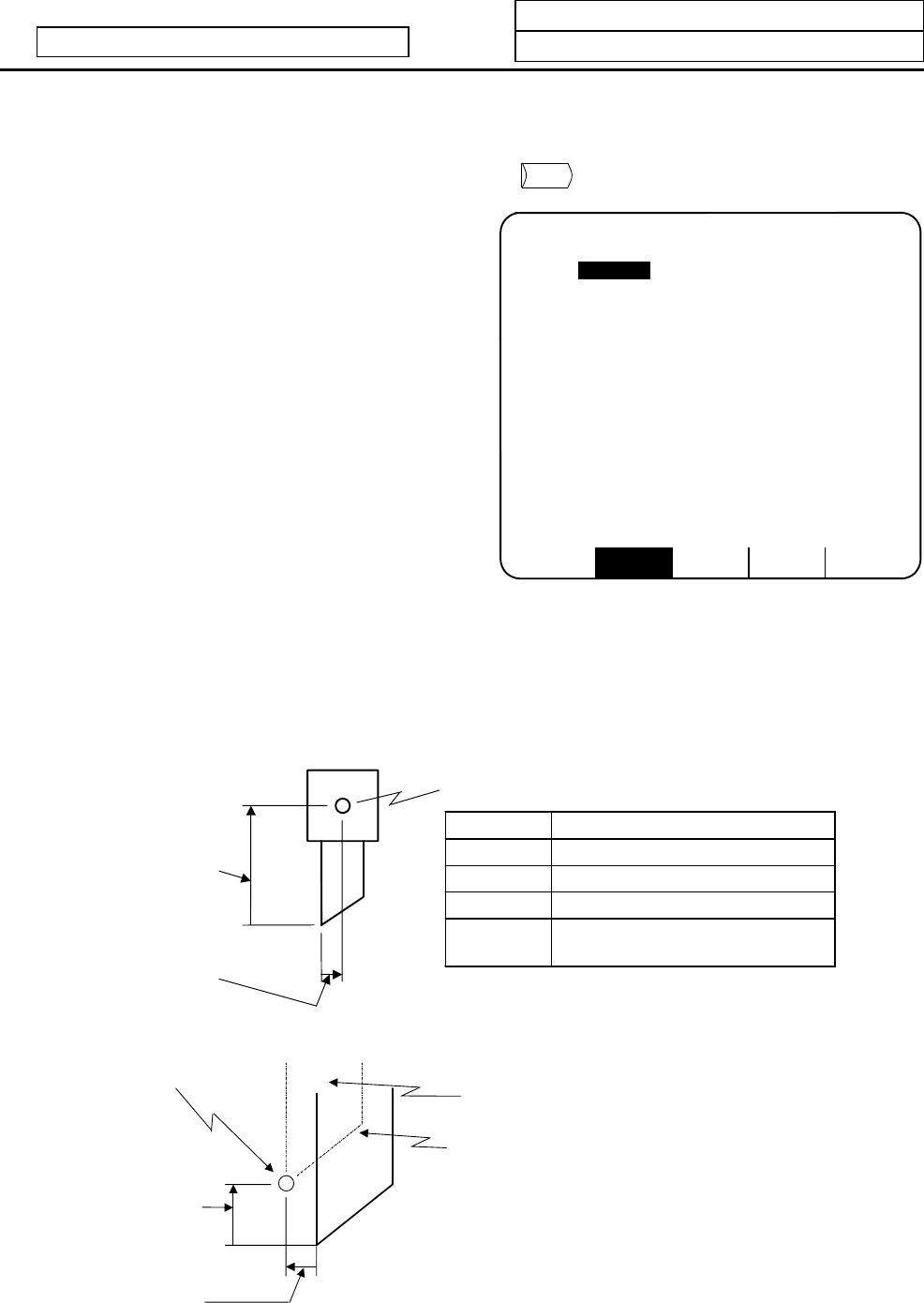

The TOOL DATA screen will appear when the menu key
T-DATA
is pressed.
T-OFSET T-DATA NOSE-R LIFE MENU
[TOOL DATA] TOOL 2.1/4
[MACHINE] X 123.456
#I :INC. #A :ABS Z 345.678
# C 0.000
1 X -12.345 Z 23.456 C 0.000
2 X -100.100 Z 10.123 C 0.000
3 X 55.123 Z 100.234 C 0.000
4 X 0.000 Z 0.000 C 0.000
5 X 0.000 Z 0.000 C 0.000
6 X 0.000 Z 0.000 C 0.000
7 X 0.000 Z 0.000 C 0.000
8 X 0.000 Z 0.000 C 0.000
9 X 0.000 Z 0.000 C 0.000
10 X 0.000 Z 0.000 C 0.000
T M
(
)
X
(
)
Z
(
)
C
(
)
Set the tool length in respect to the program basic position of each tool used.
When the tool compensation No. is designated by the tool command (T command), compensation is carried
out matching the wear data of the previous screen. Generally, the program basic point position is either the
turret center position or the basic tool nose position.
(1) Turret center position
Data Function
X X axis tool length offset
Z Z axis tool length offset
C Additional axis tool length offset
MACHINE
Same value as on the
MONITOR screen.
Program basic position
Z axis tool
length offset
X axis tool
length offset
(2) Basic tool nose position
Z axis tool
length offset
Tool used for work
Basic tool
X axis tool
length offset
Basic position
(Note)
Whether to apply the tool length offset of the additional axis on the 3rd axis or 4th axis can be
selected with the parameter (#1520 Tchg34).
