3. Tool Offset (M system)
3.1 Tool Offset
I-114
Refer to "3 (I). Tool Offset (L system)" for L system.

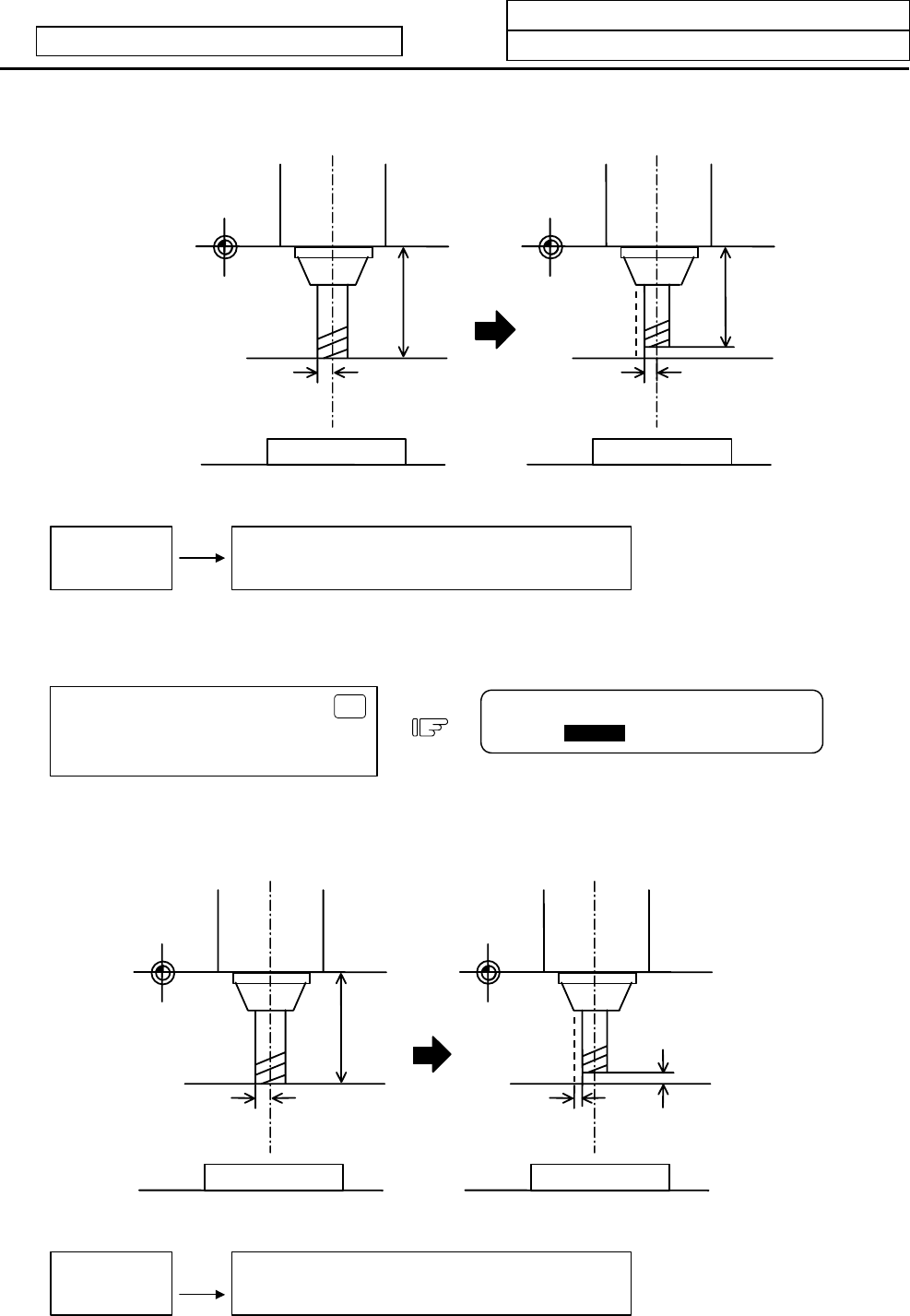

Example of setting tool offset data in absolute mode
Radius comp.
A
bsolute value 3.0
setting
Length
comp.
40.0
Old New
Radius comp.
5.0
Length comp.
A
bsolute value setting
37.0
Display
#3 40.000
Setting Display
# ( 3) ( 37) #3 37.000
(#3 length compensation data)
(b) Incremental value setting
Change to the incremental value setting mode as follows:
[TOOL OFFSET]
#A:ABS. #I:INC.
Enter I in # ( ), then press the
INPUT
key.
# ( I) DATA( )
"#I: INC." is displayed in reverse video indicating
that the incremental value setting mode is valid.
Example of setting tool offset data in incremental value setting mode
Radius comp.
Incremental -2.0
value setting
Length
comp.
40.0
Old New
Radius comp.
5.0
Length comp.
Incremental
value setting
-3.0
Display
#3 40.000
Setting Display
# ( 3) ( -3) #3 37.000
(#3 length compensation data)
The mode thus set is retained even after the screen is changed or after power has been turned OFF.
