9.7 STANDARD
I
-366
9.7 STANDARD (
STANDARD
)
When the menu key
STANDARD
is pressed, the machine's moveable range determined in setup parameters
OT+ and OT– (stored stroke limit range) becomes the display range. The scale and display position are
automatically changed. This function is useful if the drawing graphics abnormally shift out of the screen.

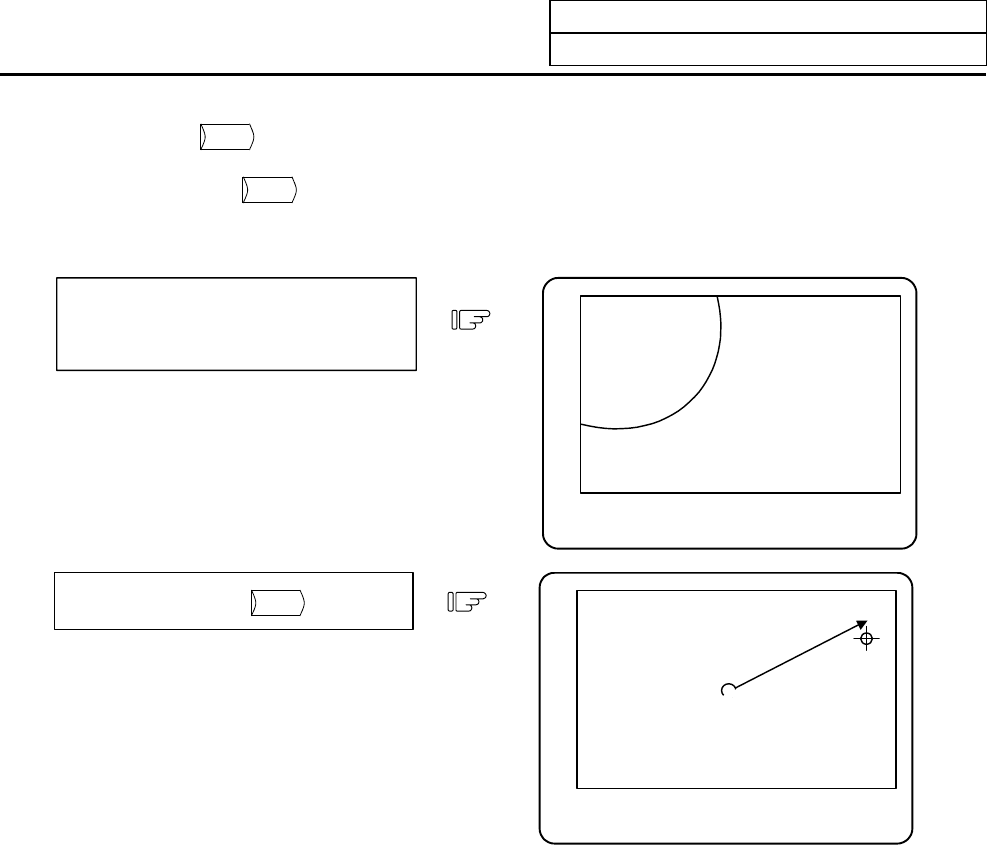

TRACE EXECUTION
For example, assume the tool mark
disappears from the screen during
drawing.
Press the menu key
STANDARD
.
TRACE EXECUTION
1) The display range is changed.
2) All already drawn graphics (if present)
are erased, and a new drawing starts in
the changed display range.
