4. Parameters (User)
4.3 I/O Parameters
I-165

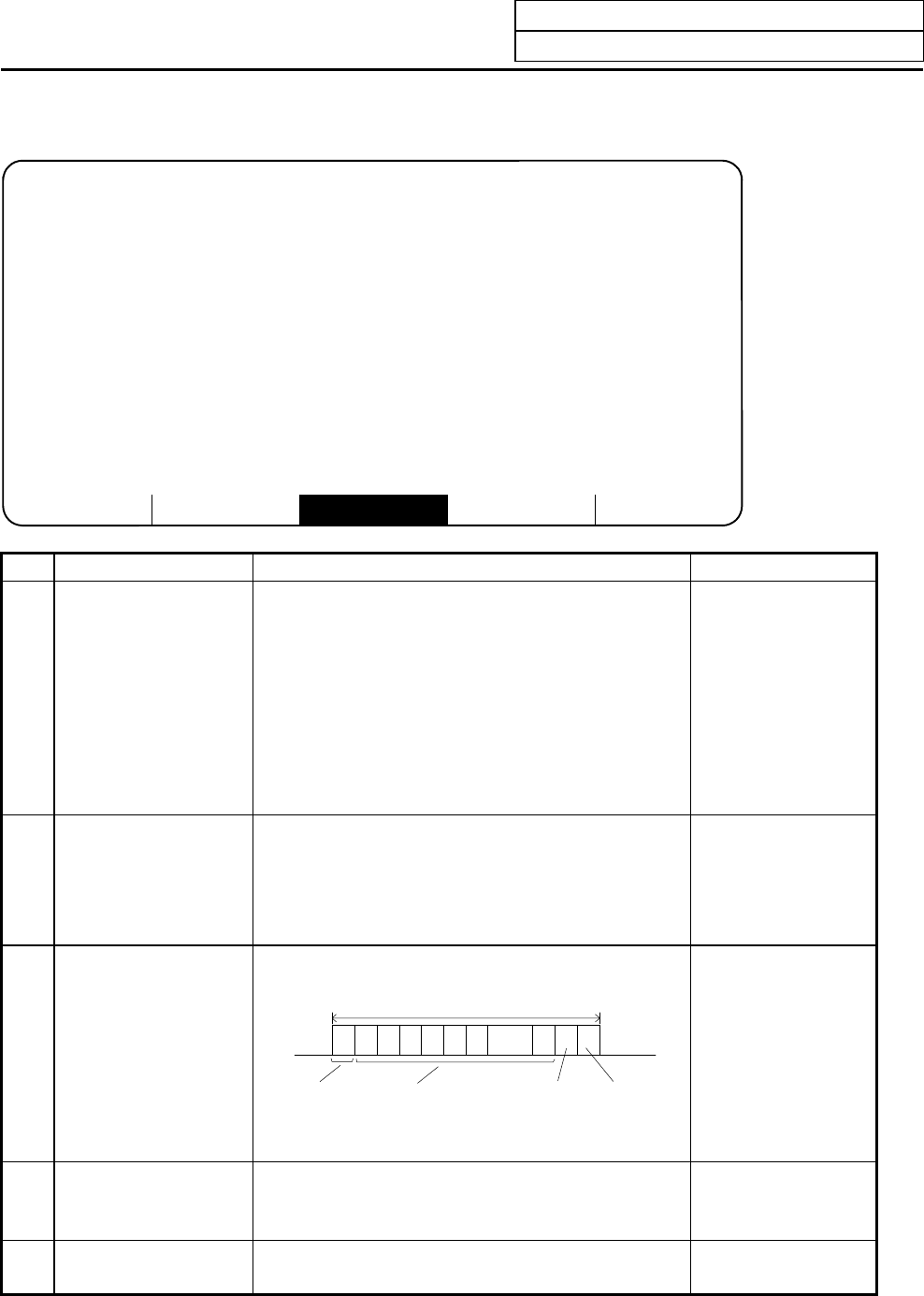

4.3.3 COMPUTER LINK PARAMETER
[COMPUTER LINK PARAMETER] PARAM 2.7/7
# # #
9601 BAUD RATE 0 9611 LINK PARAM. 3 00 9621 DC1 OUT SIZE 0
9602 STOP BIT 0 9612 LINK PARAM. 4 00 9622 POLLING TIMER 0
9603 PARITY EFFECTIVE 0 9613 LINK PARAM. 5 00 9623 TRANS. WAIT TMR 0
9604 EVEN PARITY 0 9614 START CODE 0 9624 RETRY COUNTER 0
9605 CHR. LENGTH 0 9615 CTRL. CODE OUT 00 9625 0
9606 HAND SHAKE 0 9616 CTRL. INTERVAL 0 9626
9607 TIME-OUT SET 0 9617 WAIT TIME 0 9627
9608 DATA CODE 0 9618 PACKET LENGTH 0 9628
9609 LINK PARAM. 1 00 9619 BUFFER SIZE 0 9629
9610 LINK PARAM. 2 00 9620 START SIZE 0 9630
#( )DATA( )
WORK PROCESS
I/O PAR SETUP MENU
# Item Contents Setup range (unit)
9601
BAUD RATE Specify the rate at which data is transferred. 0: 19200 (bps)
1: 9600
2: 4800
3: 2400
4: 1200
5: 600
6: 300
7: 110
8: 38400
9602
STOP BIT Specify stop bit length used in start-stop mode. See
“PARITY EFFECTIVE” in #9603. The number of
characters is adjusted in output mode so that no
problems occur if the parity check is enabled.
1: 1
2: 1.5
3: 2
9603
PARITY EFFECTIVE This parameter is set when using a parity bit
separately from the data bit.
ON
OFF
Start bit
Data bit
b1b2 b3 b4 b5 b6
bn
1 character
Stop bit
Parity bit
Set this to match the input/output device
specifications.
0: No parity bit used
in I/O mode
1: Parity bit used in
I/O mode
9604
EVEN PARITY Specify whether even or odd parity is used when
parity is used. This parameter is ignored when no
parity is used.
0: Odd parity
1: Even parity
9605
CHR. LENGTH Specify data bit length.
See “PARITY EFFECTIVE” in #9603.
2: 7
3: 8
