5. Operation Panel Switches in Operation Mode
5.7 Cycle Start and Feed Hold
II-17
5.7 Cycle Start and Feed Hold

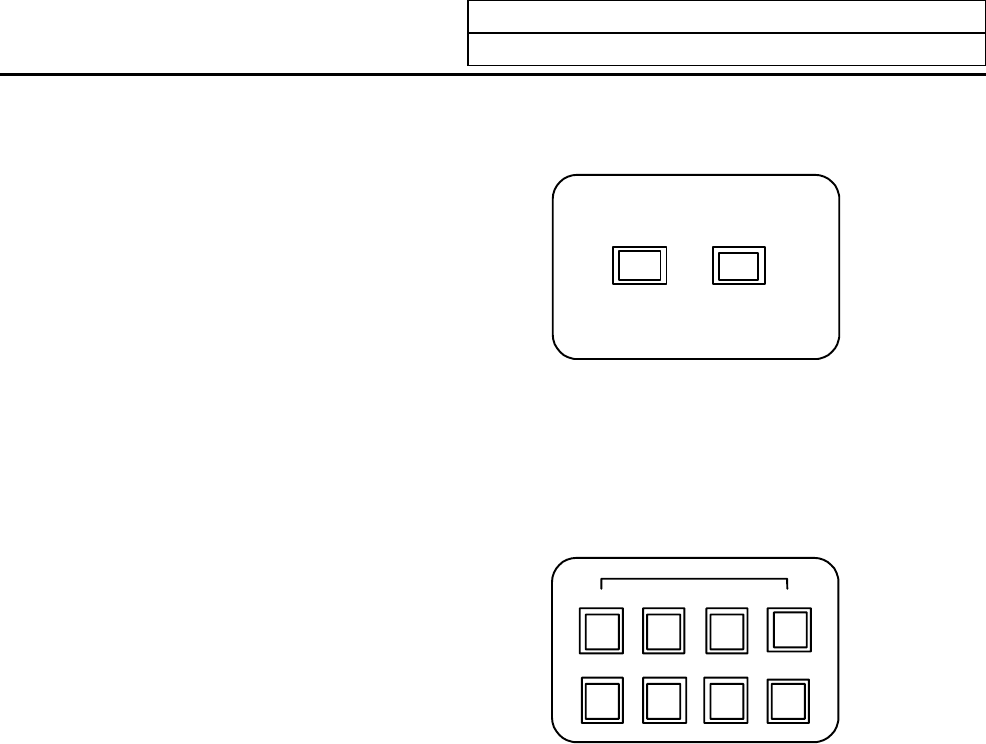

Use the CYCLE START switch to start
automatic operation (memory, tape, or MDI).
Automatic operation is executed by turning ON
the switch. Use also the switch for restart from
stop by the FEED HOLD switch or the
automatic operation stop state.
FEED HOLD
CYCLE START
The CYCLE START switch becomes effective when the switch is turned ON, then OFF.
Use the FEED HOLD switch to temporarily stop automatic operation (for example, deceleration stop of the
control axis during automatic operation). To restart operation, use the CYCLE START switch.
5.8 Feed Axis Selection
Use the FEED AXIS SELECT switch to start
the controlled axis during manual operation.
While the FEED AXIS SELECT switch is held
ON, the selected controlled axis is moved.
When the switch is turned OFF, the controlled
axis move stops.
FEED AXIS SELECT
+
X
-
X
+
Y
-
Y
+Z
-Z
+4
-4
