5. Program
5.3 Program Edit Operation
I-181

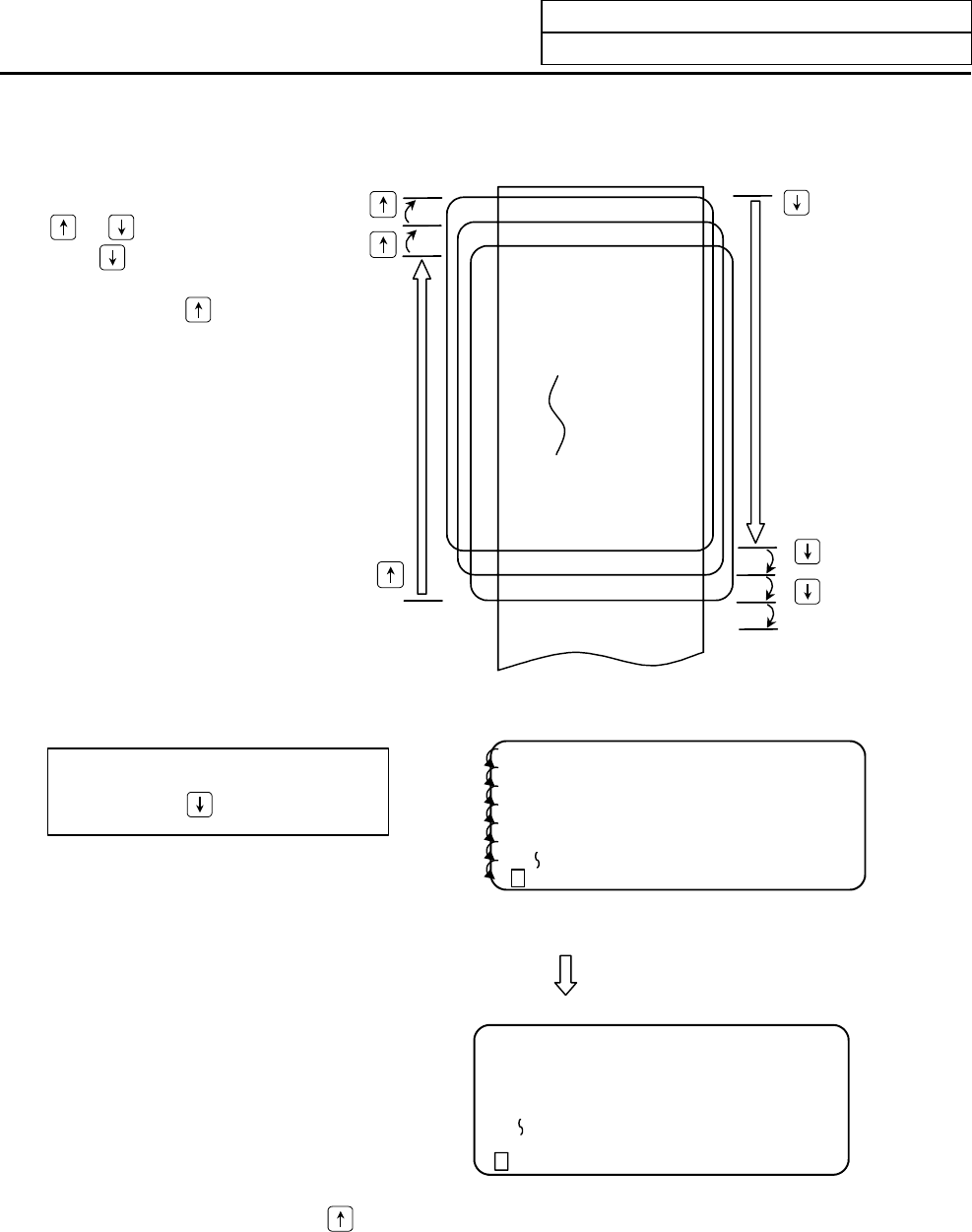

5.3.2 Data Display Update (One Line Scroll)
Data display on the screen can be
updated in line units by using the
or
key.
If the
key is pressed when the
cursor is placed at the screen
bottom or if the
key is pressed
when the cursor is placed at the
screen top, display is scrolled one
line.
N1 G28 X0 Y0 Z0;
N2 G92 X0 Y0 Z0;
N3 G00 X-300. Y-300.;
N4 G01 X-200. F2000;
N5 Y-200.;
N11
N12 Z300.;
N13 Y200.;
N14
N15
The cursor is
moved on a
single screen.
The cursor is not
moved and the
screen is scrolled.
The cursor is moved downward
each time the
key is pressed.
N1 G28 X0 Y0 Z0 ;
N2 G92 X0 Y0 Z0 ;
N3 G00 X-300. Y-300.;
N4 G01 X-200. F2000 ;
N5 Y-200.;
N6 X200.;
N12 Z300.;
1) Whenever the key is pressed, the curso
r
is moved downward one line.
2) If the key is pressed when the cursor
reaches the screen bottom, display data
is scrolled up one line. The cursor
remains at the screen bottom.
3) If the key is furthermore pressed, the
display data is scrolled up one line and
new data is displayed at the screen
bottom.
4) In contrast, whenever the
key is
pressed, the cursor is moved upward
one line. If the key is pressed when the
cursor reaches the screen top, the
display data is scrolled down one line
and the previous block data is displayed
at the screen top.
N2 G92 X0 Y0 Z0 ;
N3 G00 X-300. Y-300.;
N4 G01 X-200. F2000 ;
N5 Y-200.;
N6 X200.;
N12 Z300.;
N13 Y200.;
