5. Program
5.5 Edit Screen Extension Operation
I-192
(4) Action to be taken when the "NO CHARACTERS" or "NB NOT FOUND" error occurs
If a search can be executed for the currently displayed screen, the search starts with the starting block
being displayed. If the specified data is not found before the program end (%), the "NO CHARACTERS"
or "NB NOT FOUND" occurs. By pressing the
INPUT
key at this time, the search is retried beginning with
the program head. If a search is executed for data in a block that is before the currently displayed data,
the search will be accomplished by the second search.

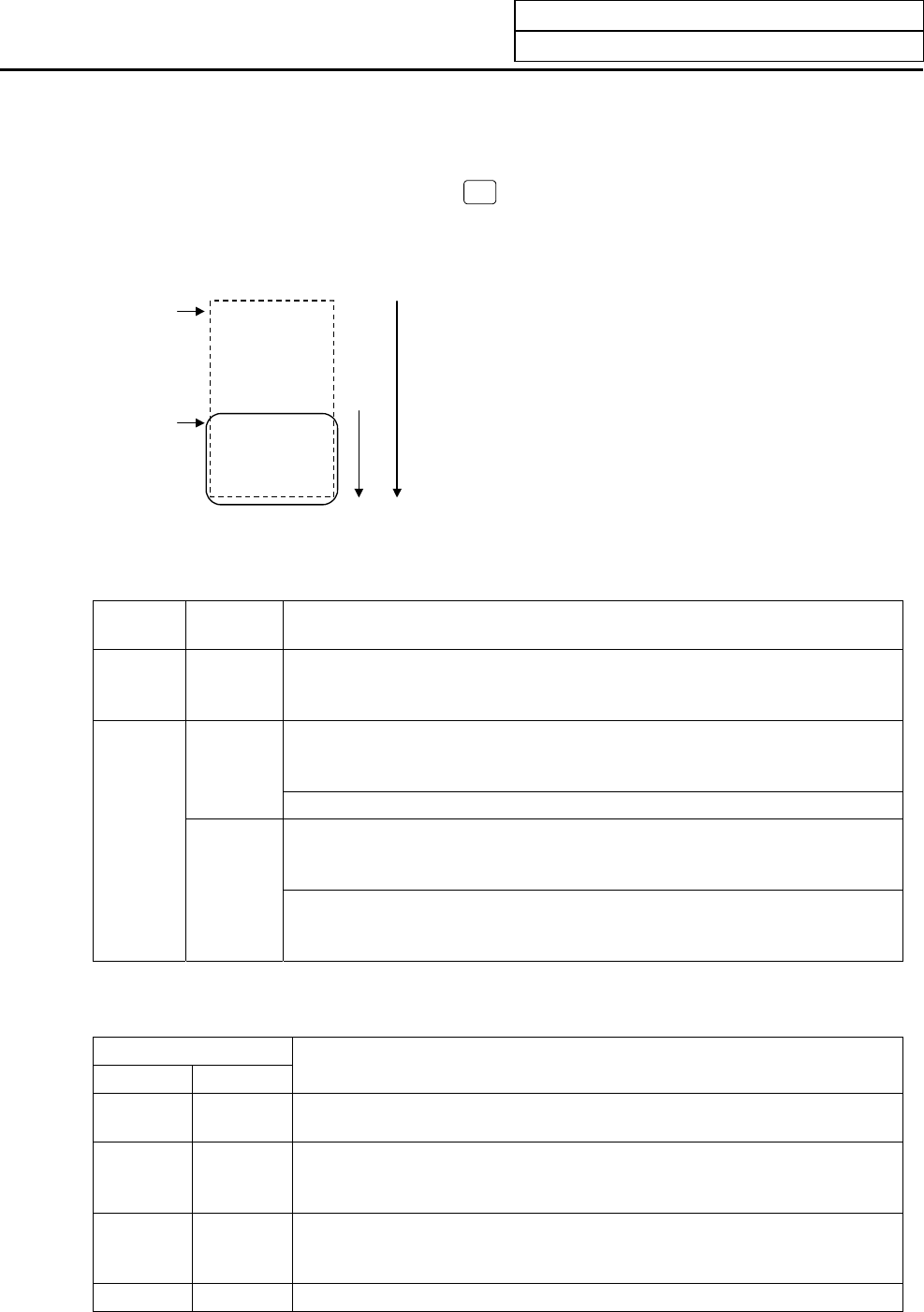

(Example)
N1……;
N2…;
N3……;
N4…;
N5……;
N6……;
N7……;
%
Program head
Data being
displayed
on screen
(1)
(2)
(Example 1) For search for N4:
(1) First search ... Error "NB NOT FOUND"
(2) Second search ... N4 can be found.
(Example 2) For search for N7:
(1) First search ... N7 can be found.
(Example 3) For search for N8:
(1) First search ... Error "NB NOT FOUND"
(2) Second search ... "NB NOT FOUND"
(5) Precautions for 2-part system
When using the 2-part system, the methods for searching the program or block to be edited can be
switched with the parameters.
#1050
MemPrg
#1285
ext21/bit0
Details
0, 2, 4, 6 - The machining program registered in the memory common for the systems
is searched for with the designated program No., sequence No. and block
No.
1, 3, 5, 7 OFF Selected system: The machining program registered in the memory for
each system is searched for with the designated
program No., sequence No. and block No.
System that is not selected: The searched machining program is held.
ON Selected system: The machining program registered in the memory for
each system is searched for with the designated
program No., sequence No. and block No.
System that is not selected: The machining program registered in the
memory for each system is searched for with
the designated program No.
When using the 2-part system and the same number batch generation for all system programs is valid,
the program is erased in the following manner according to whether programs are present for each
system.
Presence of program
System 1 System 2
Operation
Yes Yes
The System 1 and System 2 machining programs are searched for
simultaneously.
Yes No
The System 2 machining program is newly created, and the System 1
and System 2 machining programs are searched for simultaneously.
(Note) An error (E14) will occur if the number of programs is insufficient.
No Yes
The System 1 machining program is newly created, and the System 1
and System 2 machining programs are searched for simultaneously.
(Note) An error (E14) will occur if the number of programs is insufficient.
No No An error (E14) occurs.
