5. Stored Stroke Limit
5.2 Stored stroke limit II
III-32

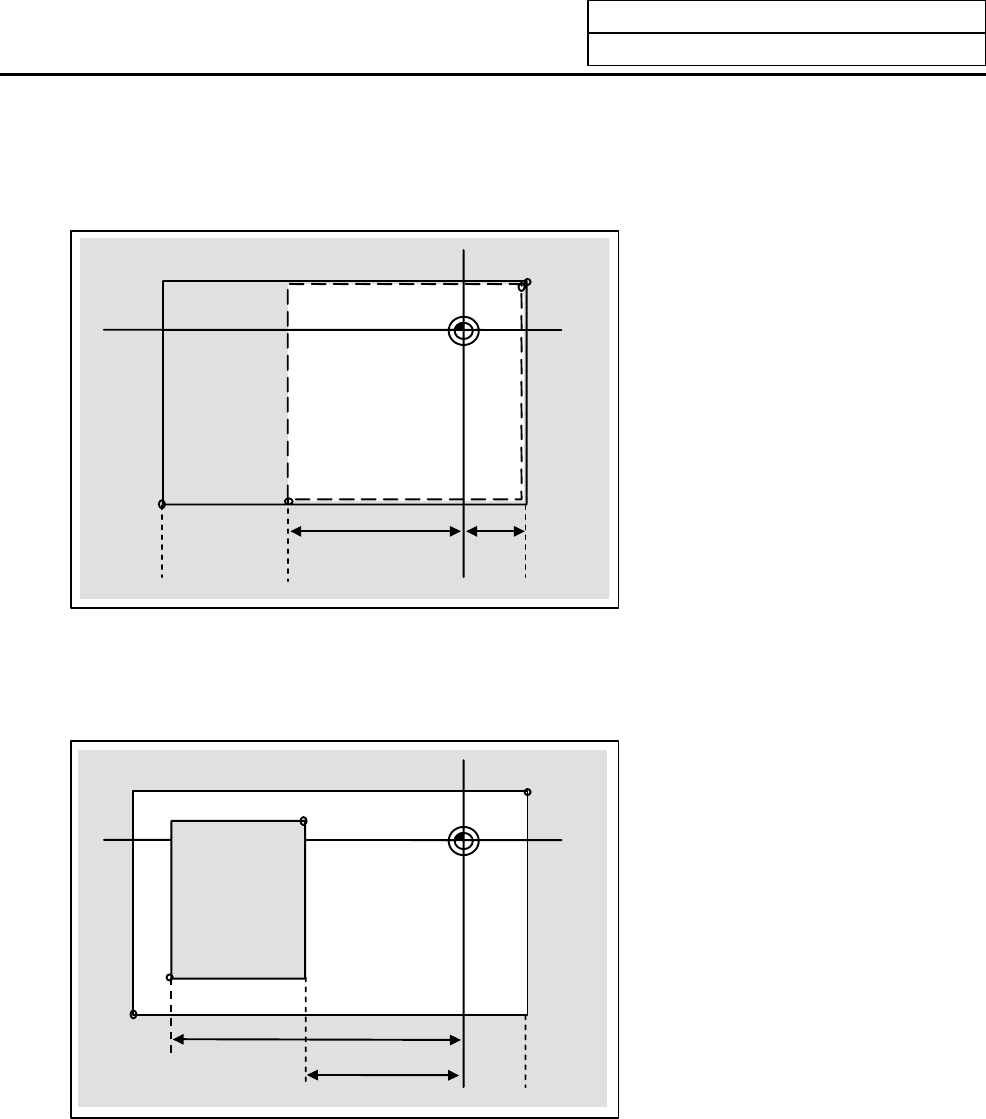

(1) Stored stroke limit II (When prohibited range is on outside)
When used with the stored stroke limit I function, the narrow range designated by the two types becomes
the movement valid range.
Range
prohibited with
stored stroke
limit II
Basic machine
coordinate system
Point 1
Prohibited range
Machine movement
valid range
– setting value
+ setting
value
Prohibited range
Point 2
Point 3
Point 4
(2) Stored stroke limit IIB (When prohibited range is on inside)
A range except for that of the stored stroke limit I becomes the movement prohibited range.
Range prohibited
with stored stroke
limit IIB
Basic machine
coordinate system
Point 1
Prohibited range
Machine movement
valid range
– setting value
+ setting value
Prohibited range
Point 2
Point 3
Point 4
The following values are set
with the coordinate values in
the basic machine coordinate
system.
Point 3 and 4:
#8205
OT-CHECK-P
#8204
OT-CHECK-N
Points 1 and 2 are the
prohibited range set with
stored stroke limit I.
