6. Operation Panel Switch Functions
6.9 Manual Absolute
II-20
6.9 Manual Absolute
When the MANUAL ABSOLUTE switch is turned ON, the program coordinate system is updated by manual
tool move distance. If the switch is OFF, the program coordinate system is updated by manual tool move
distance.
W
-Y
X

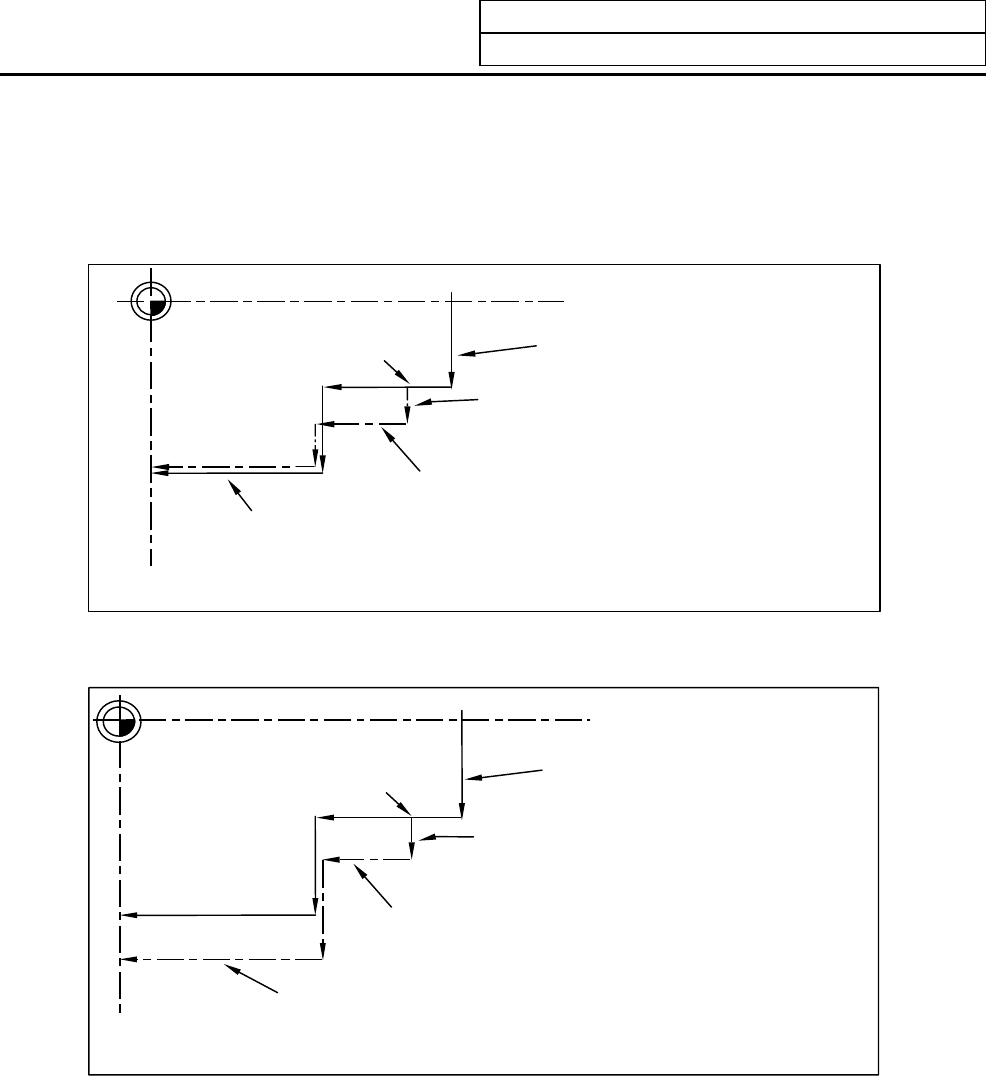

When MANUAL ABSOLUTE Switch Is ON
Passes through the same path as program.
Path after manual interrupt
(Program coordinate system is updated by tool
move distance.)
Manual interrupt
Path on program
(absolute command)
Feed hold stop
W
-Y
X
When MANUAL ABSOLUTE Switch Is OFF
Path is shifted by manual interrupt value.
(Origin (zero) is moved.)
Path after manual interrrupt
(Program coordinate system is not updated.)
Manual interrupt
Path on program
(absolute command)
Feed hold stop
