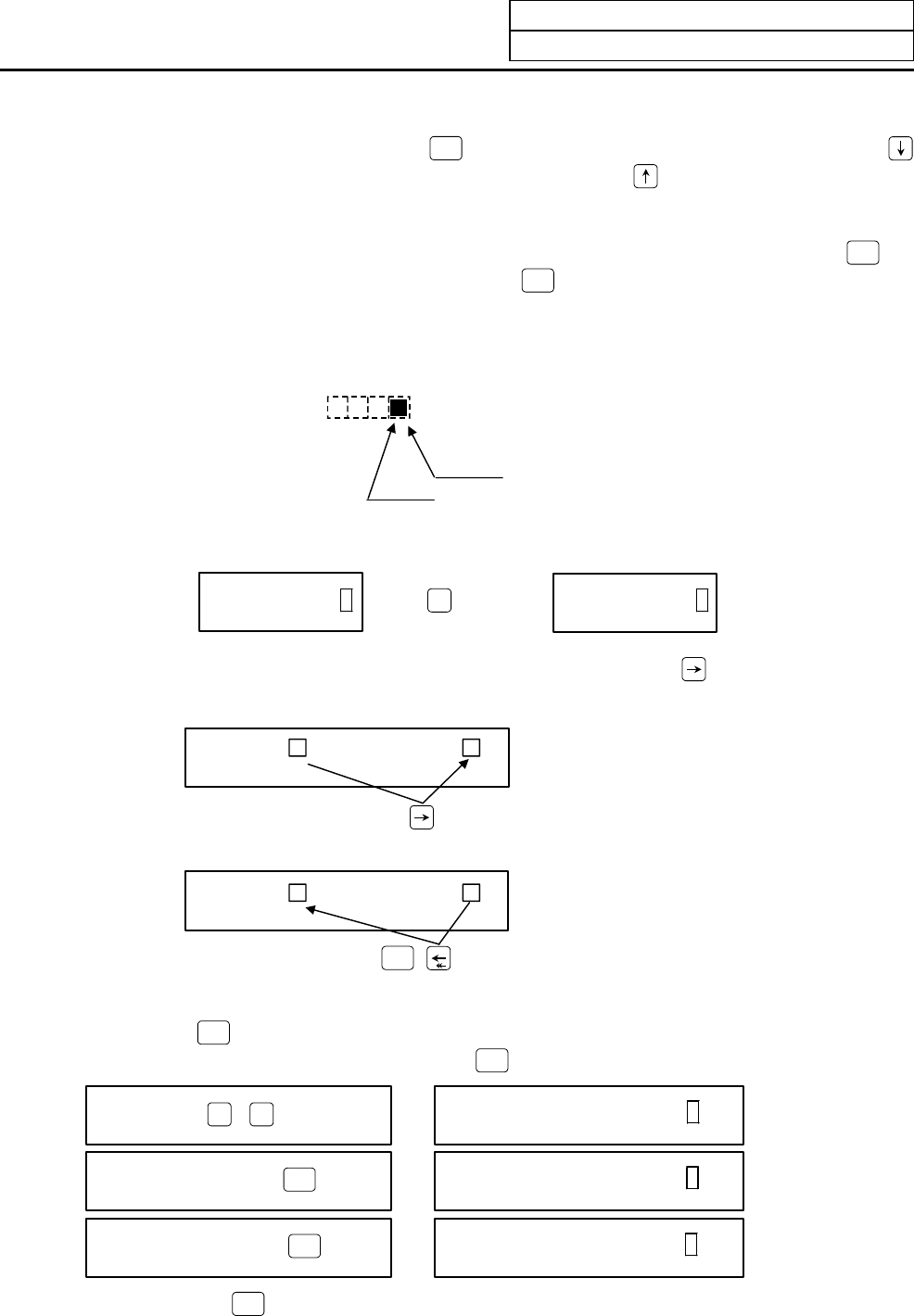

1. Setting and Display Unit Operation
1.5 Data Setting Method
I-14
3) To consecutively set data, repeat (3) and (4).
4) To change the data number, press the
INPUT
key. The number is incremented by one. When the
key is pressed, the number is incremented by one. When the
key is pressed, the number is
decremented by one. The data number can also be directly changed by moving the cursor to the
data number setting area.
(Note 1)
Data in the setting area is only displayed on the screen and is not set in memory until the
INPUT
key
is pressed. If the screen is changed before the
INPUT
key is pressed, the data in the setting area
becomes invalid.
(2) Cursor control and operation examples
1) Data write into the display screen (by keying) is made at the position indicated by the cursor. When
the cursor is not displayed, keying is not effective.
Data ( )
Cursor
This position enables keying.
2) When any key is pressed, already displayed data is moved one column to the left and the data
corresponding to the key pressed at the cursor position is displayed.
DATA ( 12) When
3
is pressed, DATA ( 123)
3) If a number of parentheses exist in the data setting area, pressing the
key when the cursor is in
the right end within a parenthesis causes the cursor to move to the right end within the next pair.
When the
key is pressed, the cursor is moved
to the right end within the next parentheses.
# ( ) DATA ( )
When the
SHIFT
key are pressed, the cursor is
moved to the preceding parentheses.
# ( ) DATA ( )
4) When the
DELETE
INS
key is pressed, the data at the cursor position is deleted. To cancel one character
entered by using any data key, etc., use the
DELETE
INS
key.
If you press
3
,
3
by mistake,
# ( 12) DATA ( 1233)
If you once press the
DELETE
INS
key,
# ( 12) DATA ( 123)
If you again press the
DELETE
INS
key,
# ( 12) DATA ( 12)
Each time the
DELETE
INS
key is pressed, one character of data at the cursor position is deleted and the
data to the left of the deleted character is moved one column to the right.
