6. Data In/Out
6.2 DATA OUTPUT
I-242
6.2.3 Outputting Parameter Data
Parameter data which is set and displayed on the screen can be output. The output operation can be made
also during automatic operation. This format allows the details of the parameters to be read when the
parameter data is output to a printer, etc.
The output tape length varies with the number of axes and parameter numeric. For the three-axis
specification, this length is 40 to 50m. The following data is output:
• User parameters (Machining parameters, control parameters, axis parameters)
• Data input/output parameters (I/O BASE PARAM, I/O DEVICE PARAM)
• All setup parameters
• Internal parameter data (absolute position internal data)
(Note 1) The TOOL OFFSET, TOOL REGISTRATION, TOOL LIFE, and WORK OFFSET data are not
output.

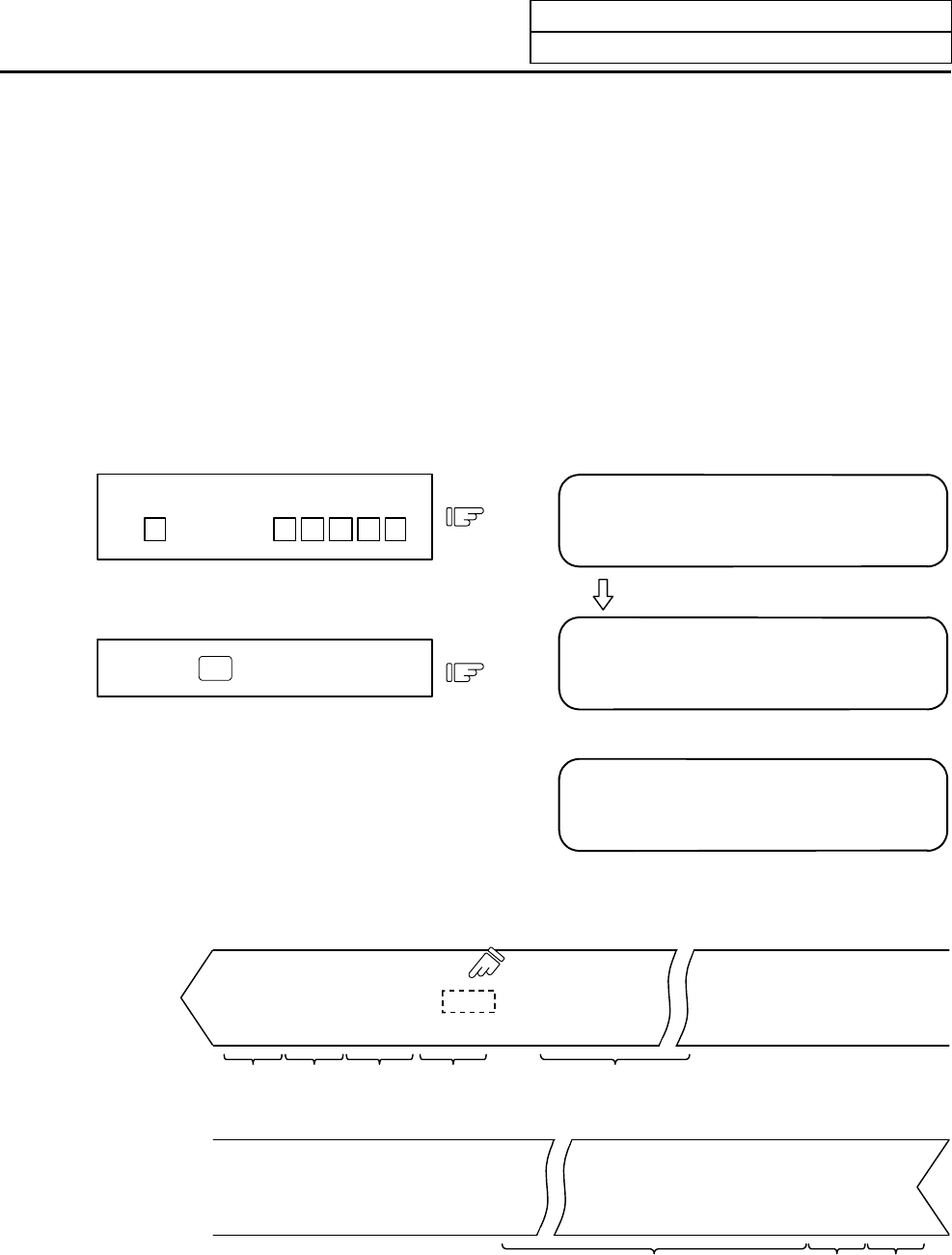

(1) Outputting parameter data
1) Output to parameter data is started. The
message "DATA OUT EXECUTION" are
displayed.
2) After the tape end code % (EOR) is output,
data output ends with the message "DATA
OUT COMPLETE" displayed.
# ( 3 ) DATA ( TEST1) ( )
<OUTPUT DATA>
DATA OUT COMPLETE
# ( ) DATA ( ) ( )
Press the
INPUT
key.
Set the data type to parameter.
# ( 3
) DATA ( T E S T 1 )
<OUTPUT DATA>
DATA OUT EXECUTION
# ( 3 ) DATA ( TEST1) ( )
(2) Output tape format
Comment Data area Feed Feed
E E E E
O O PARA100 ( TEST1 ) O N1001T1P1 O
R B B B
Feed Data area Feed
E E
O O
B R
Header
(For tape
identification)
The set comment is output.
