4. Parameters (User)
4.1 Workpiece Coordinate
I-135
4.1.4 Workpiece Coordinate Offset Measurement Function (L System)
(1) Outline
The workpiece coordinate offset data is automatically calculated when the tool nose is aligned to the
workpiece coordinate zero point and the
INPUT
SHIFT
keys (
CALC
key) are pressed. The calculation results
are displayed in the setting area on the screen.

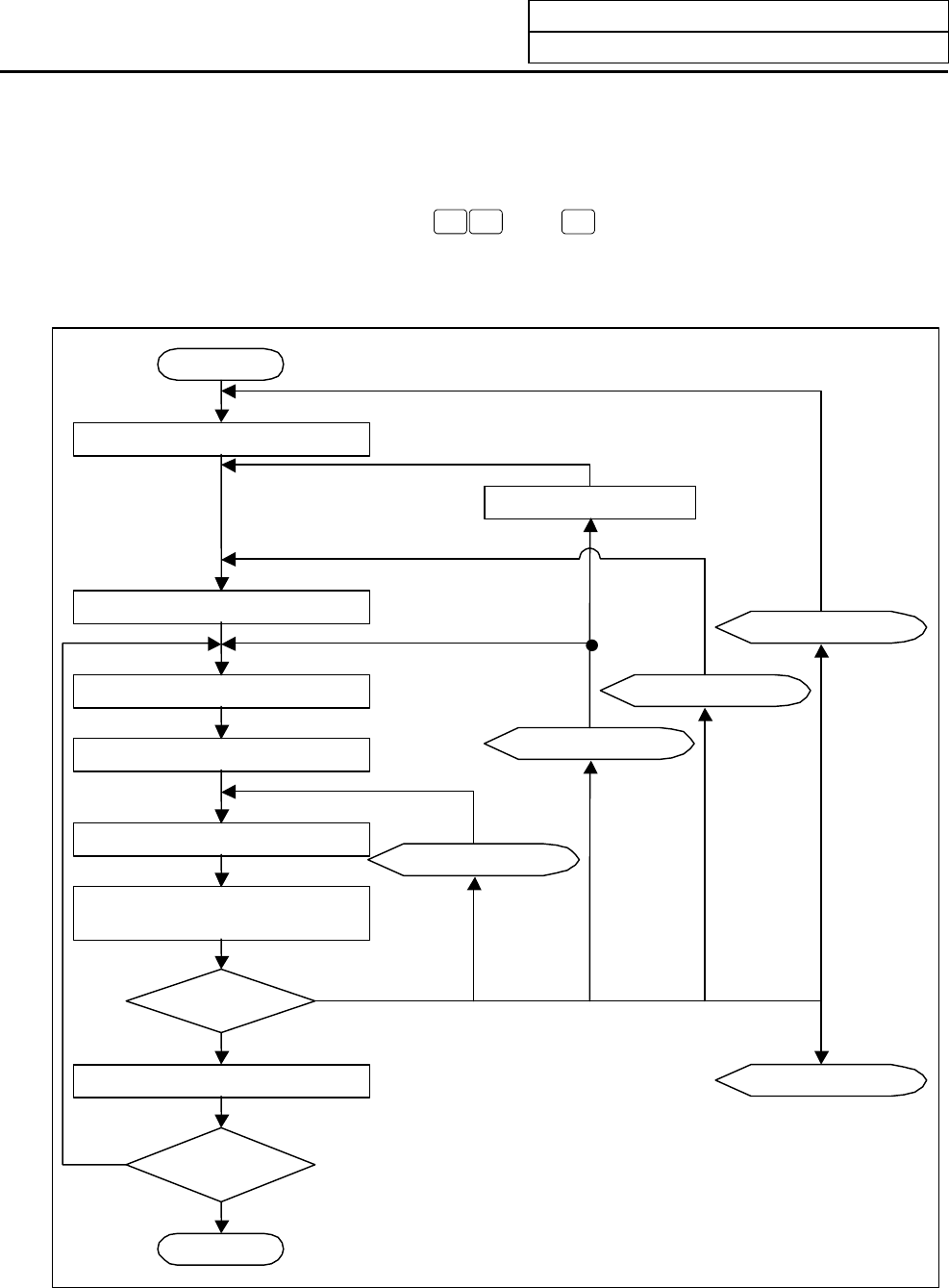

(2) Operation procedures
Start
(a) Returning to zero point
Confirmation of tool length
and nose wear
(b) Selecting the tool
(c) Positioning the tool nose
Shift to WORK OFFSET screen
(d) Selecting the measurement workpiece
coordinate and axis
(e) Automatically calculating the workpiece
coordinate system's offset data
Error?
(f) Setting the data
Continue
measurement?
End
No
Yes
Yes
No
No option
Setting error
Measurement axis R
point incomplete
Compensation number illegal
Data range exceeded
Steps for measuring workpiece coordinate offset (L system)
