2. Monitor
2.1 POSITION
I-21
Display item Explanation
12/14 13:27 The date and the time are displayed.
O12345678 N12345-12 The currently executing program number, sequence number, and
block number are displayed.
<SUB> O 1000 N 200-30 When a subprogram is being executed, the program number,
sequence number, and block number of the subprogram are
displayed.
[POSITION]
X-12345.678
Y 12345.678
Z 0.000 #1
C 0.000 #1
The relative value is coordinate position using referenced to the
machine zero point.
The current position during execution and its abbreviation (if the
position is specific or is placed in specific state) are displayed.
#1~#4 (first to fourth reference point positions),
] [ (servo off state),
> < (axis removed state)
MR (mirror image) are displayed.

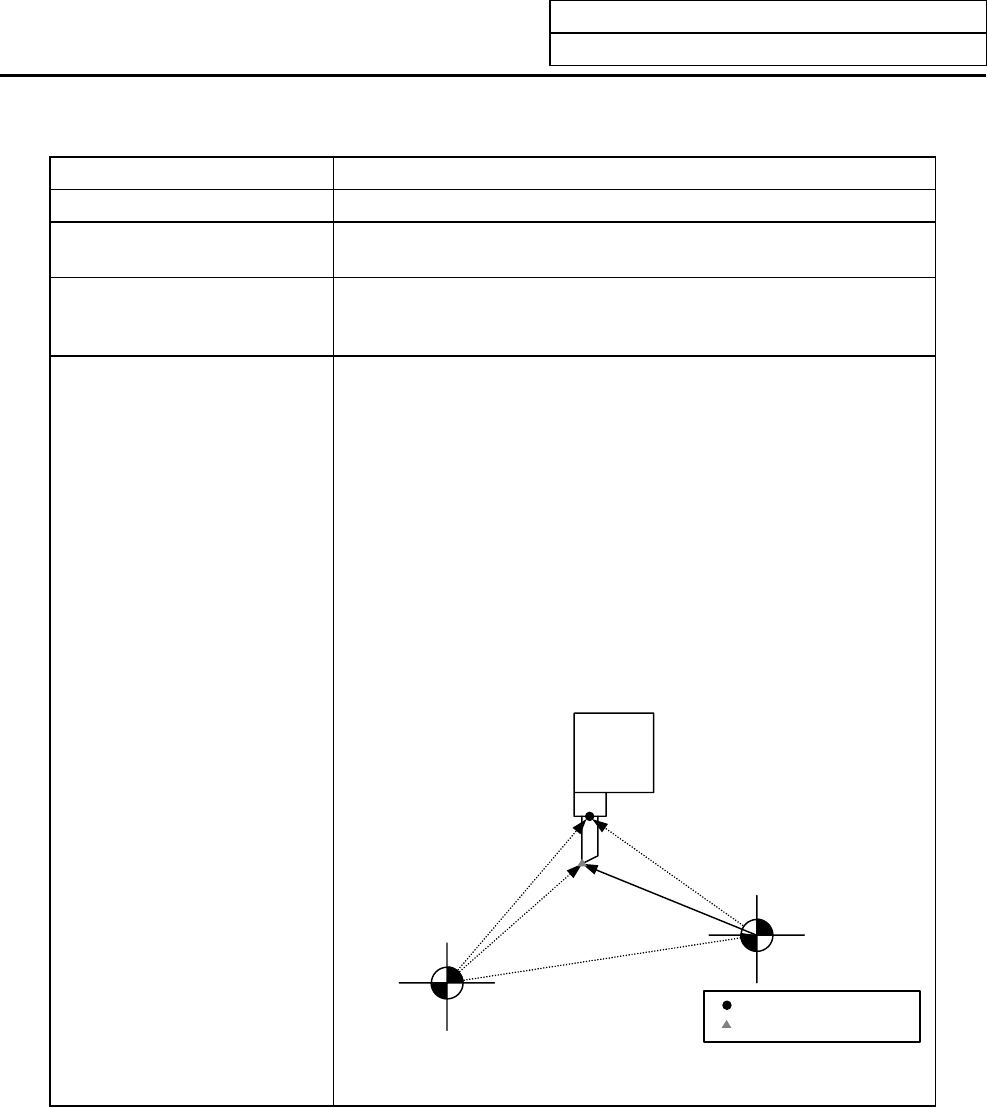

Whether the tool reference position (figure below (a)) or the current
position of the tool nose position (figure below (b)) that considers
offset, such as tool length offset amount or tool diameter
compensation amount, in the tool reference position is applied to
the display of the relative value can be selected with the parameter.
Workpiece offset
Machine
zero point
Workpiece
zero point
Relative value
(a)
(Machine position)
Displayed by tool reference
position
Workpiece
coordinate
Current value B
Tool reference position
Tool nose position
Relative value
(b)
Displayed by tool
nose position
Tool
(Continued on next page)
