5. Program
5.4 MDI Screen Extension Operation
I-187
5.4 MDI Screen Extension Operation

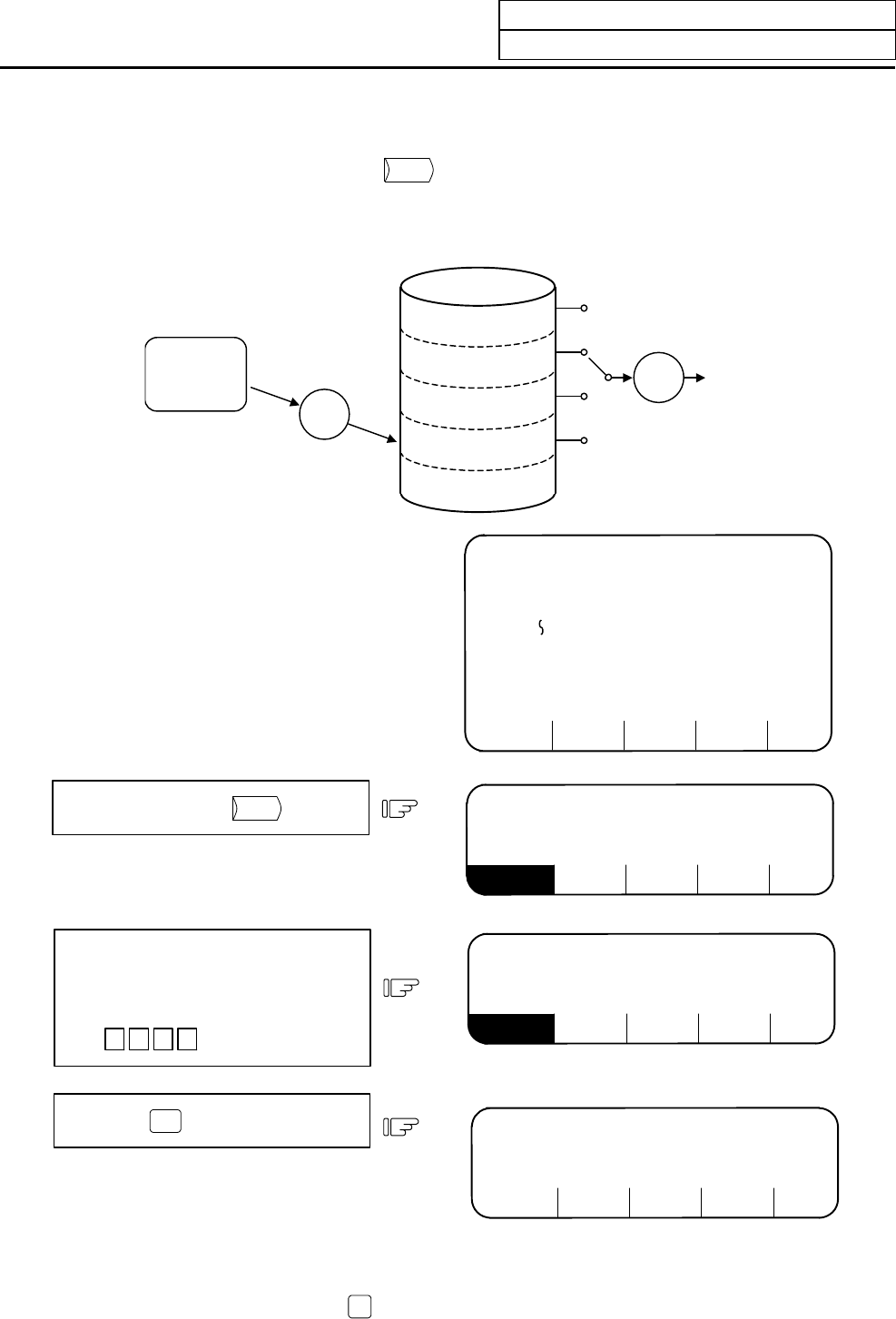

5.4.1 MDI Data Registration in Memory (
MDI-ENT
)
Data set on the MDI screen can be registered in memory. Comments can be added to indicate the contents
of the program to be registered.
Memory
operation
Registra-
tion
MDI data
Machine
control
Memory
O 1
O 100
O 1000
O 1234
For example, assume that MDI data is set as
shown in the right. The MDI data registration
procedure in memory is described below:
MDI
N1 G28 X0 Y0 Z0 ;
N2 G92 X0 Y0 Z0 ;
N3 G00 X-100. Y-100.;
N8 MO2 ;
%
MDI-ENT
(1)
1) The setting area for "MDI-ENT" is
displayed.
MDI-ENT
O( ) COMMENT( )
Press the menu key
MDI-ENT
.
(2)
MDI-ENT
O( 1234) COMMENT( )
Set the registered program number.
A
comment can also be set at the
same time.
(Example)
O ( 1 2 3 4 ) COMMENT ( )
1) If the program has been registered
normally into memory, the message "MDI
ENTRY COMPLETE" is displayed. The
display is cleared from the setting area; the
MDI-ENT menu display returns to normal
display from the reverse display.
Press the
INPUT
key.
(3)
MDI ENTRY COMPLETE
MDI-ENT
(Note) If preparing comment, space (
SP
) can be written in it. But, the space is ignored after registration for
efficient use of memory.
