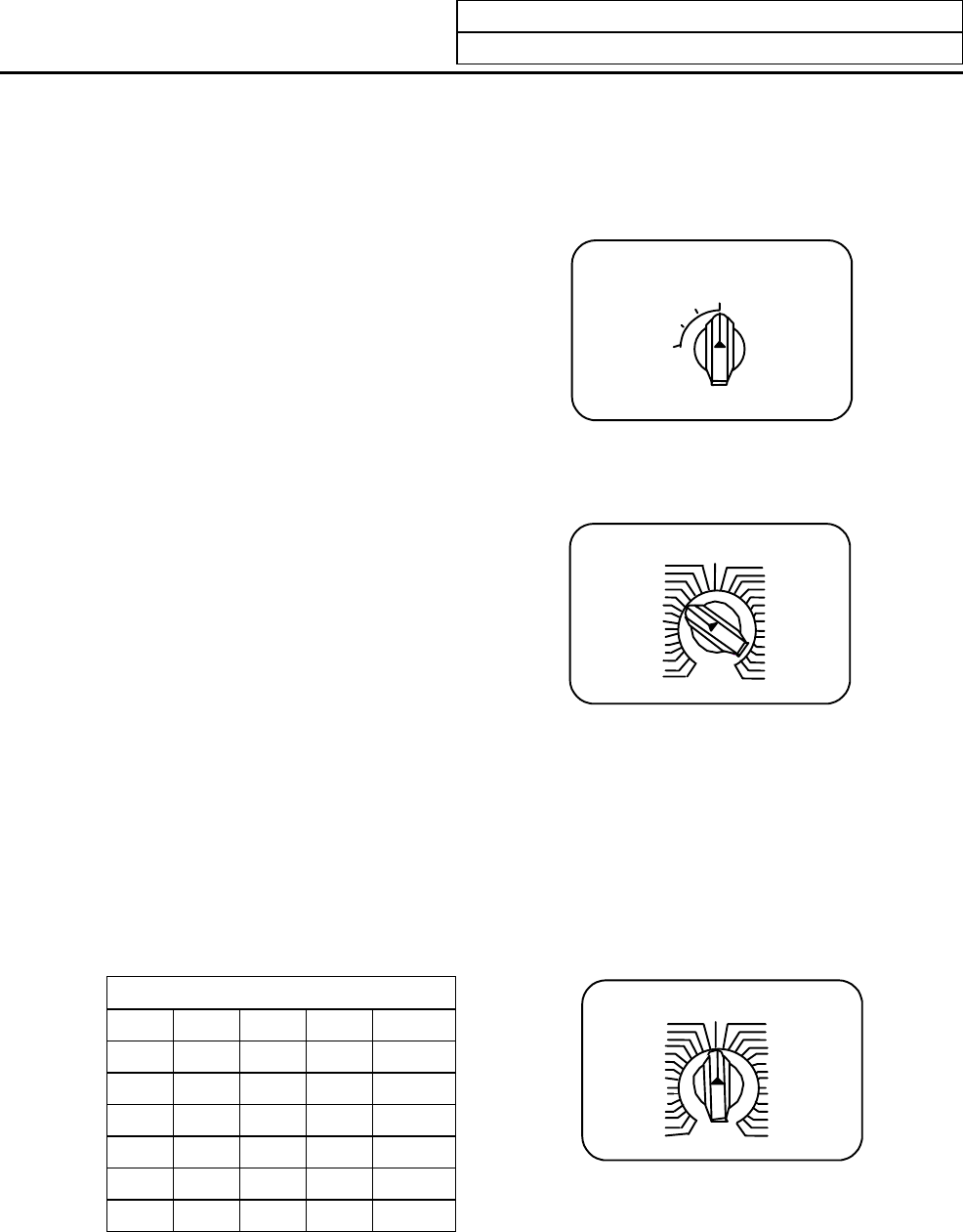

5. Operation Panel Switches in Operation Mode
5.1 Rapid Traverse Override
II-15
5. Operation Panel Switches in Operation Mode
5.1 Rapid Traverse Override
Use the RAPID TRAVERSE OVERRIDE switch to
override the rapid traverse feedrate in automatic or
manual operation.
RAPID TRAVERSE OVERRIDE is applicable to the
following:
Automatic operation: G00, G27, G28, G29, G30
Manual operation: Rapid traverse, return to
reference position,
incremental feed
100
50
1
25
%
RAPID TRAVERSE OVERRIDE
5.2 Cutting Feed Override
Use the FEED RATE OVERRIDE switch to override
the feedrate in automatic operation (G01, G02, or
G03 F command) or the manual feedrate of jog feed
in manual operation in 10% units in the range of 0%
to 300%. FEED RATE OVERRIDE is also applicable
to the dry run rate in automatic operation.
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
%
FEED RATE OVERRIDE
150
160
170
180
190
200
210
220
230
240
250
260
270
280
290
300
(Note 1) The dry run rate is the movement rate set by using the MANUAL FEED RATE switch by
overriding the programmed feedrate in automatic operation.
(Note 2) See Section 6.5 for feedrate override applied to manual feedrate.
5.3 Manual Feedrate
Use the MANUAL FEED RATE switch to set the feedrate in jog feed mode during manual operation. The
feedrate can be selected among 31 steps from 0 to 14000.0 mm/min.
When the MANUAL OVERRIDE switch (interrupt switch) is turned ON, the override value set by using the
FEED RATE OVERRIDE switch takes precedence over the value set by using the MANUAL FEED RATE
switch.
Manual feedrate (mm/min)
0. 7.2 72 720 7200
1.0 10.0 100 1000 10000
1.4 14.0 140 1400 14000
2.0 20.0 200 2000
2.7 27.0 270 2700
3.7 37.0 370 3700
5.2 52.0 520 5200
MANUAL FEED RATE
72.0
52.0
31.0
21.0
20.0
14.0
10.0
7.2
6.2
3.7
2.7
2.0
1.4
1.0
0
140. 0
200. 0
270. 0
370. 0
520. 0
720.0
1000.0
1400.0
2000.0
2700.0
3700.0
5200.0
7200.0
10000.0
14000.0
