2.5 Resuming the Program
I-63
(2) Type 2 restart search
The program and block to be restarted are searched for with type 2.
(Example) To restart from block (a) in the following program.
(Program example)
O2000; ........................................................................................ Main program
N1 G91 G28 X0 Y0;
N2 G90 G54 G00 X0 Y0 M98 P3000;
N3 G55 G00 X0 Y0 M98 P3000; ...............................................(a)
N4 M02;
%
O3000; ........................................................................................ Subprogram
N1 G42 G01 X-10. Y-10. D05 F1000;
N2 X-40.;
N3 Y-40.;
N4 X-10.;
N5 Y-10.;
N6 G40 X0 Y0;
N7 M99;
%
a) Type A (Standard specifications)
Press the
INPUT
key.

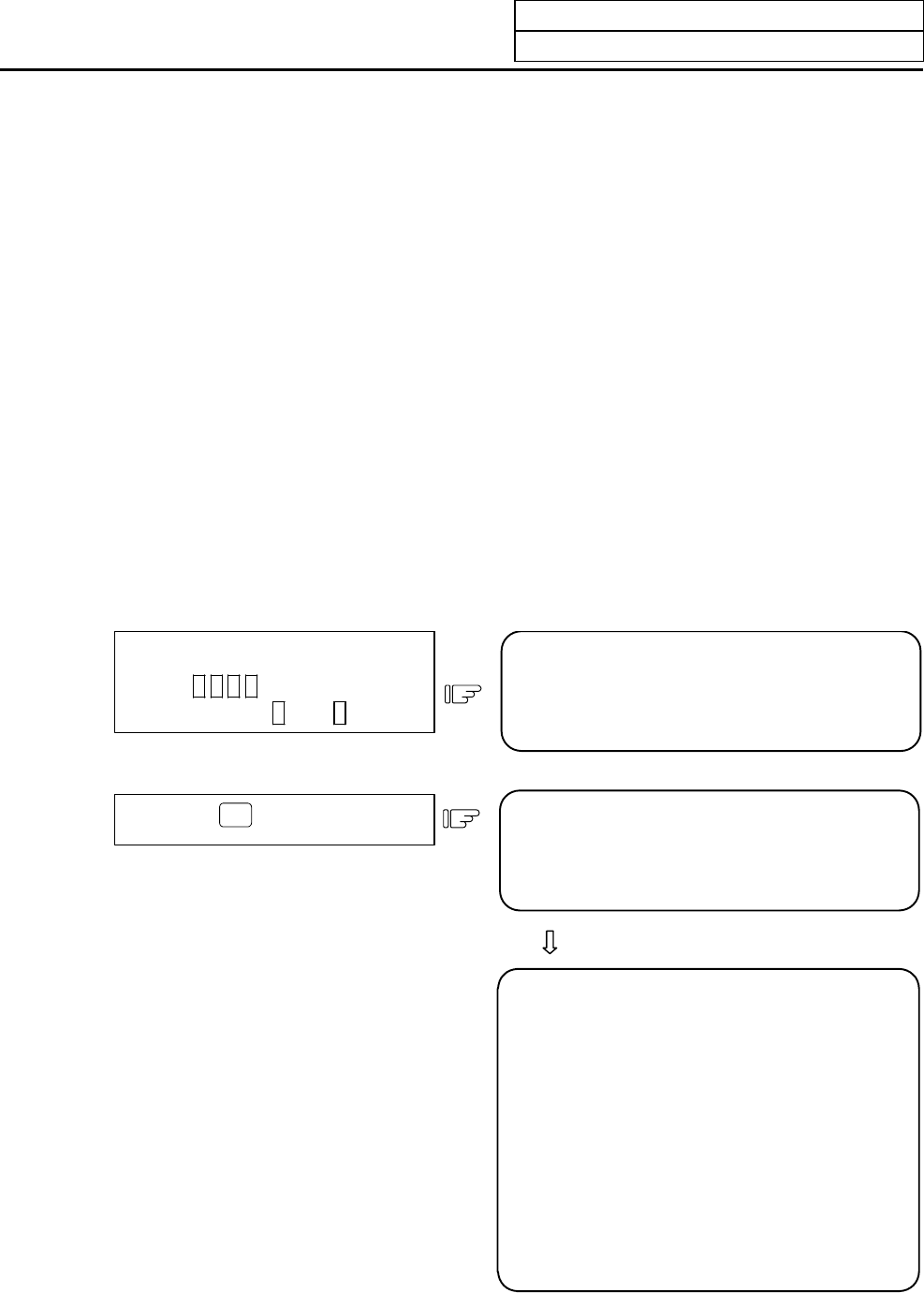

M: MODE <0> MEMORY <1> TAPE
T: TYPE <0> UNMODLE <1> TYPE 1 <2> TYPE 2
<3>T-TYP
O ( 2000) N ( ) - ( ) P ( ) T(0) M(0)
M: MODE <0> MEMORY <1> TAPE
T: TYPE <0> UNMODLE <1> TYPE 1 <2> TYPE 2
<3>T-TYP SEARCH EXECUTION
O ( 2000) N ( ) - ( ) P ( ) T(0) M(0)
[PROGRAM RESTART] MONITOR 5 .1/ 2
O 2000 N 0 - 0
<SUB> O N -
[RESTART- (G54)] [RESTART-R]
X X
Y Y
Z Z
C C
O2000;
N1 G91 G28X0 Y0;
M: MODE <0> MEMORY <1> TAPE
T: TYPE <0> UNMODLE <1> TYPE 1 <2> TYPE 2
<3>T-TYP SEARCH COMPLETE
O ( ) N ( ) - ( ) P ( ) T( ) M( )
The "SEARCH EXECUTION"
message appears during the search
and upon its completion the
"SEARCH COMPLETE" message is
displayed.
Conduct a unmodal search to locate
the head of the machining porgram.
O ( 2 0 0 0 ) N ( ) - ( )
P ( ) T ( 0 ) M ( 0 )
