4. Parameters (User)
4.1 Workpiece Coordinate
I-144
Return the sensor to the reference
point, and turn OFF the
measurement switch.
9)
The message " WLM " disappears.
(4) Subtracting external workpiece offset when workpiece coordinate offset is set
When workpiece coordinate G54 to G59, offset of expend workpiece coordinate offset P101 to P148
are set ([INPUT]) in the surface, hole center and width center workpiece offset measurement, the
coordinate value that subtracted external workpiece offset value from the measurement position
coordinate (or hole, width center coordinate) is set.
When “External workpiece offset” (#1237 set09/bit0) is OFF
The workpiece coordinate offset = The measurement (center) coordinate value - The
external work
piece
offset
When “External work offset” (#1237 set09/bit0) is ON
The workpiece coordinate offset = The measurement (center) coordinate value + The
external work
piece
offset

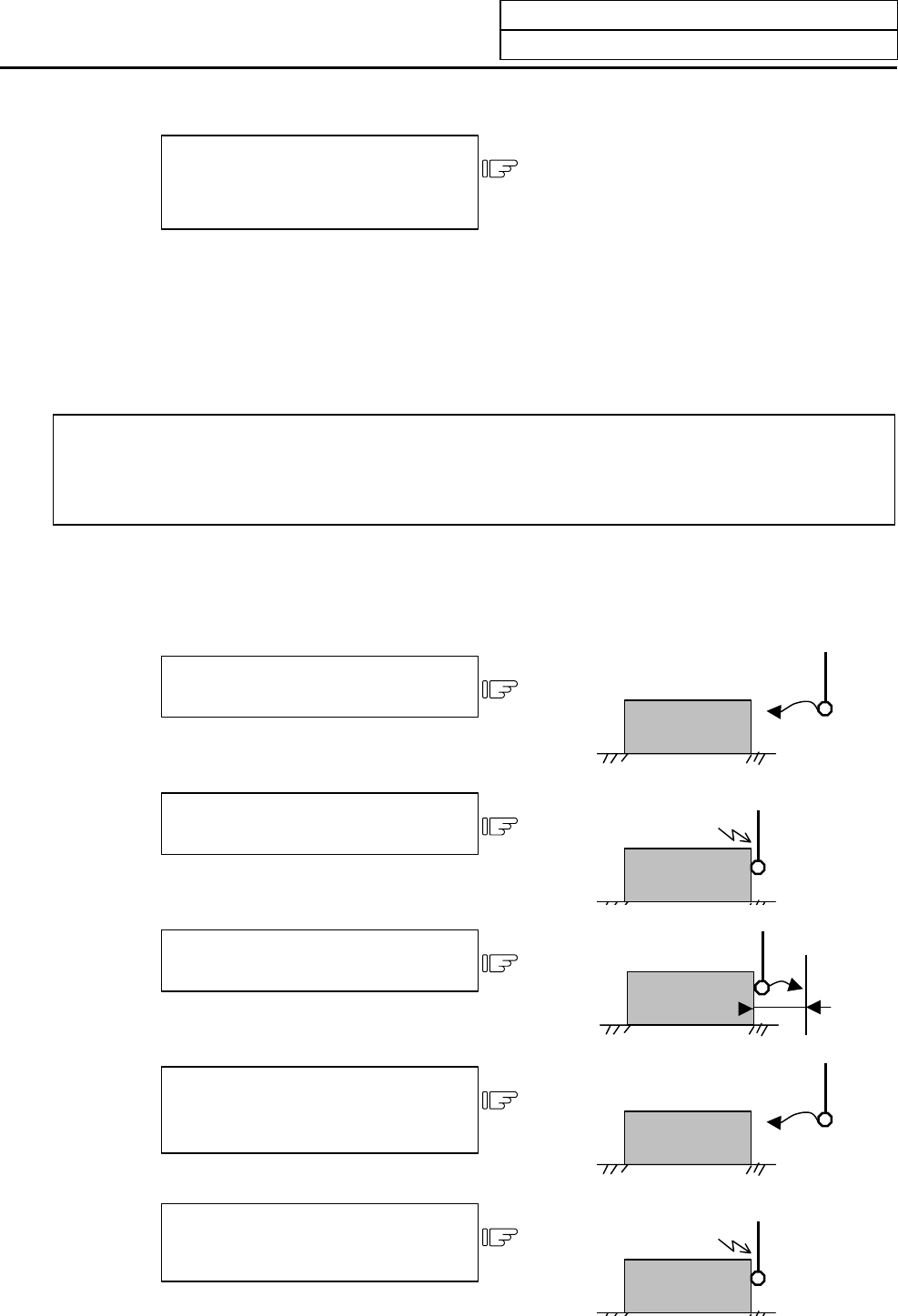

(5) Automatic re-contact movements at the time of contact
When the measurement is performed during jog mode or handle mode, perform following operation
after contact.
Move to the measurement point in
j
og mode.
1)
Stop on the measurement point.
2)
skip
Return by the return amount of
measurement parameter (#8705).
3)
Return
amount
Move to the measurement point
again by feed rate of measurement
parameter (#8706).
4)
Stop on the measurement point.
(Readout of skip coordinates)
5)
skip
