6. Daily Maintenance and Periodic Inspection and Maintenance
6.3 Replacement Methods
III-51
6.3.6 High-speed Program Server
(1) High-speed program server unit (FCU6-EP203-1)
The high-speed program server is configured of the HR831 and HR832 cards and an F150 cable. It is
replaced as a unit.

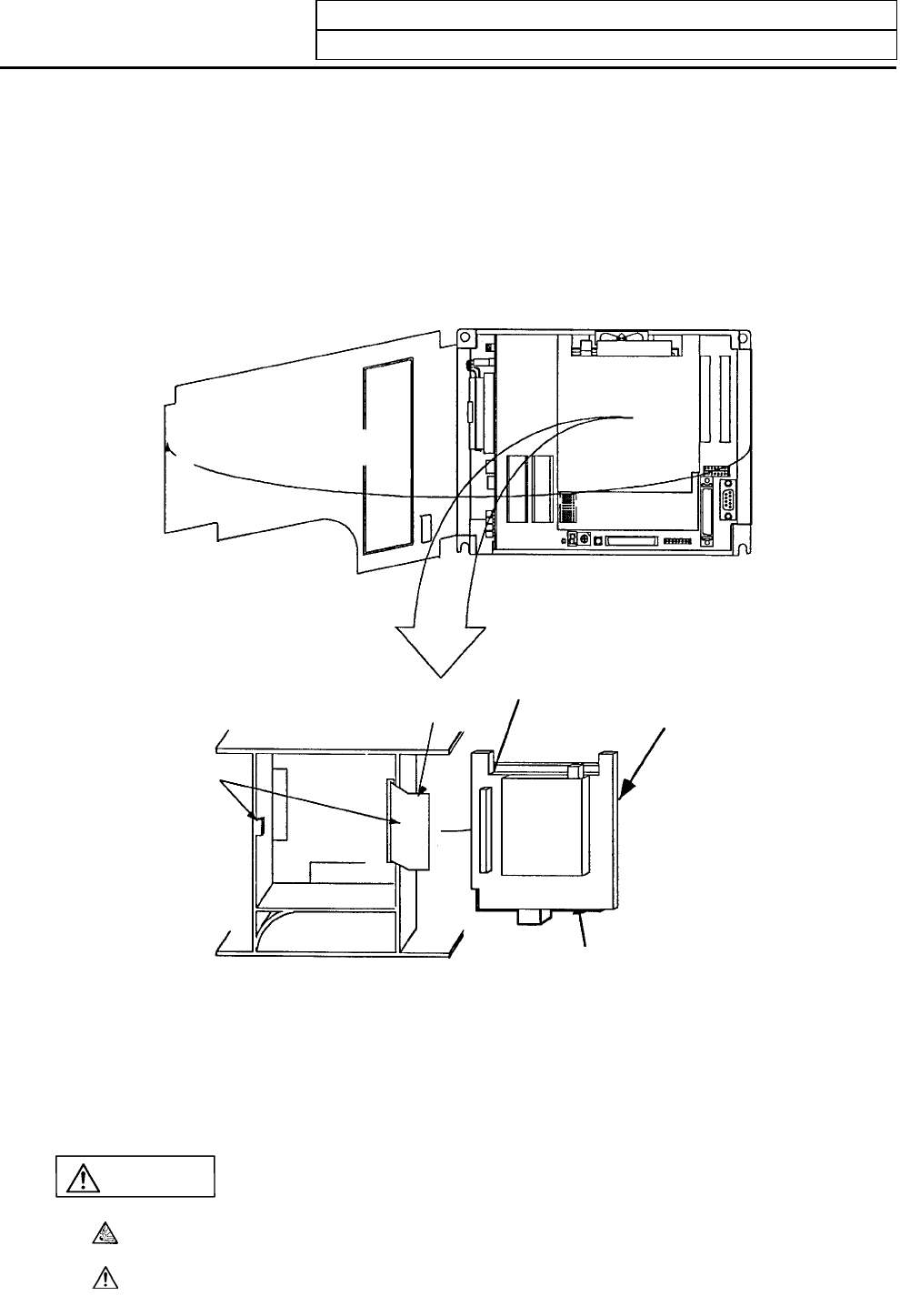

(a) Replacement procedures
Turn the machine power OFF before replacing the high-speed program server unit.
Front cover
PCB fixing claw
High-speed
program server unit
(FCU6-EP203-1)
Open the control
section's front cover.
High-speed program server unit storage section
(enlarged view)
Ethernet interface PCB
(HR832)
Control section
IC card interface PCB
(HR831)
F150 cable
EXTPCI connector
Incorrect connections will cause device damage, so always connect the cable to the
specified connector.
Do not replace the high-speed program server unit while the power is ON.
CAUTION
