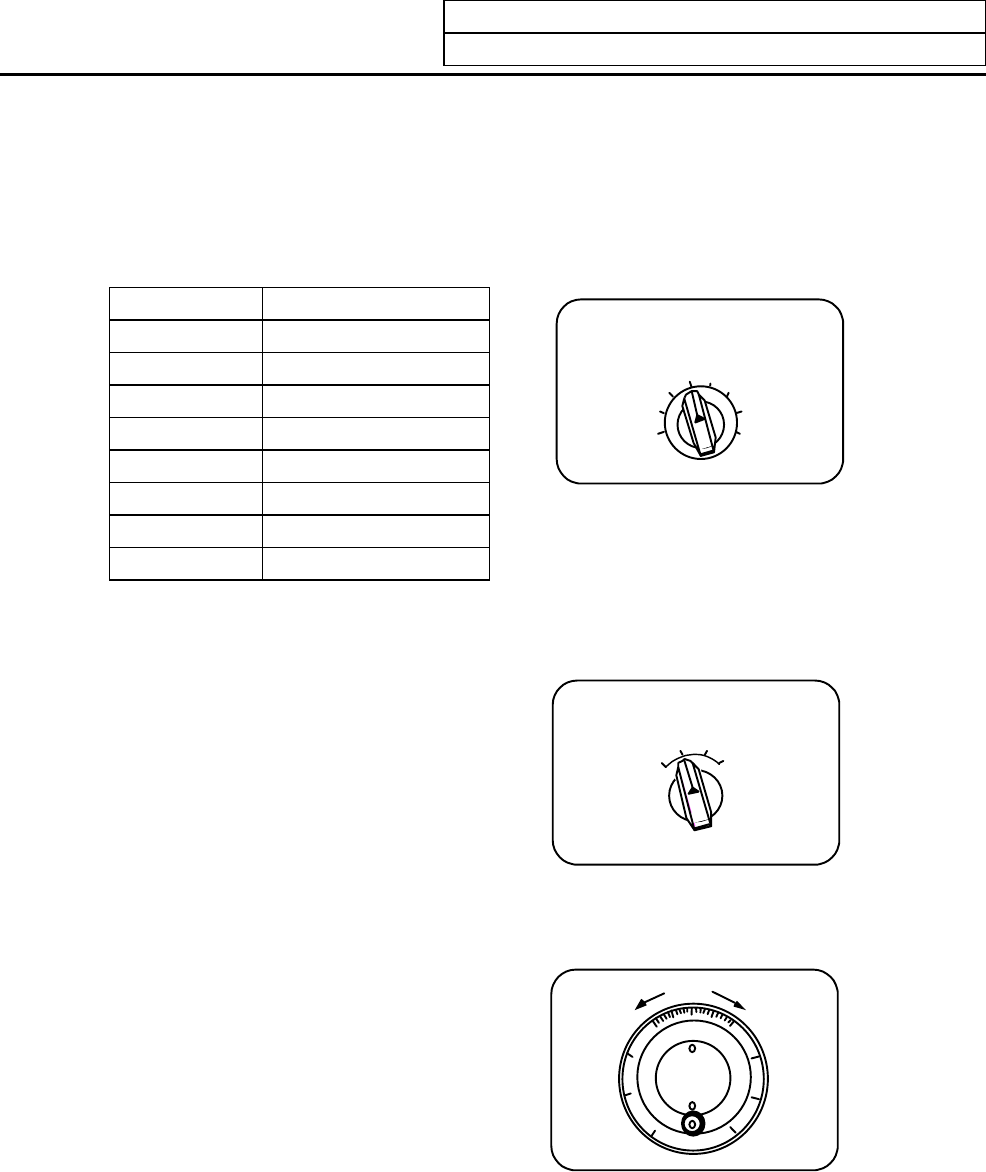

5. Operation Panel Switches in Operation Mode
5.4 Handle/Incremental Feed Magnification Factor
II-16
5.4 Handle/Incremental Feed Magnification Factor
Use the HANDLE/INCREMENTAL MAGNIFICATION switch to set the travel distance specified when manual
handle feed or incremental feed is made.
The travel distances for each axis are listed below:
(Up to 1000 can be set for handle feed.)
Handle Incremental
1 1
10 10
100 100
1000 1000
1 5000
10 10000
100 50000
1000 100000
HANDLE/
INCREMENTL MAGNIFICATION
10
10000
1
1
100
50000
1000
100000
10
10
100
100
1000
1000
1
5000
5.5 Handle Feed Axis Selection
Use the HANDLE FEED AXIS SELECT switch
to select the axis moved by handle operation
when the handle mode is selected.
X
Y
Z
4
HANDLE FEED AXIS SELECT
5.6 Manual Pulse Generator
In the manual handle mode, fine feed of the
machine can be made by turning the manual
pulse generator.
The manual pulse generator has 100
graduations per revolution and outputs one
pulse per graduation. The travel distance per
pulse is set by using the HANDLE/
INCREMENTAL MAGNIFICATION switch.
HANDLE
0
0
+
-
0
1
1
0
1
0
7
2
